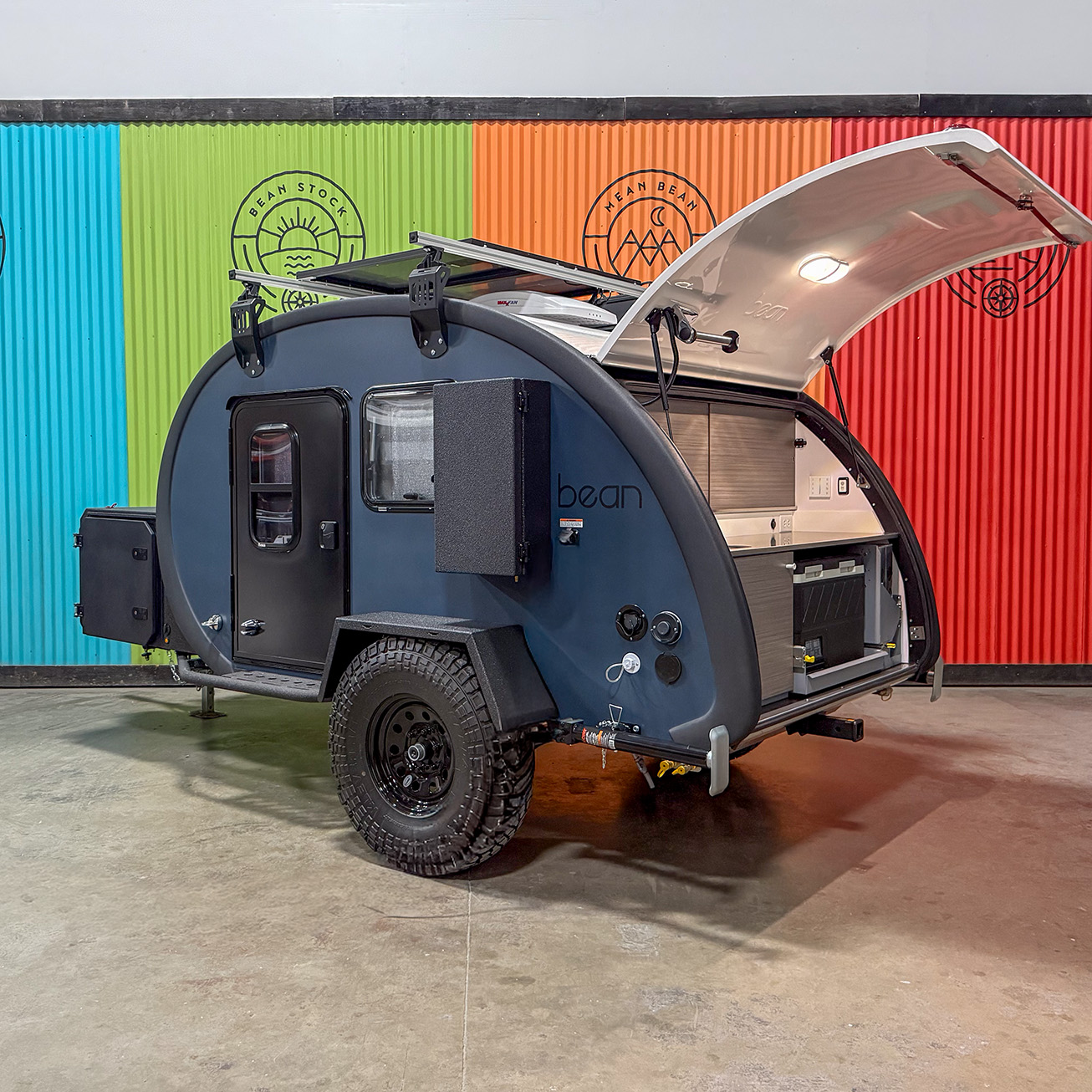

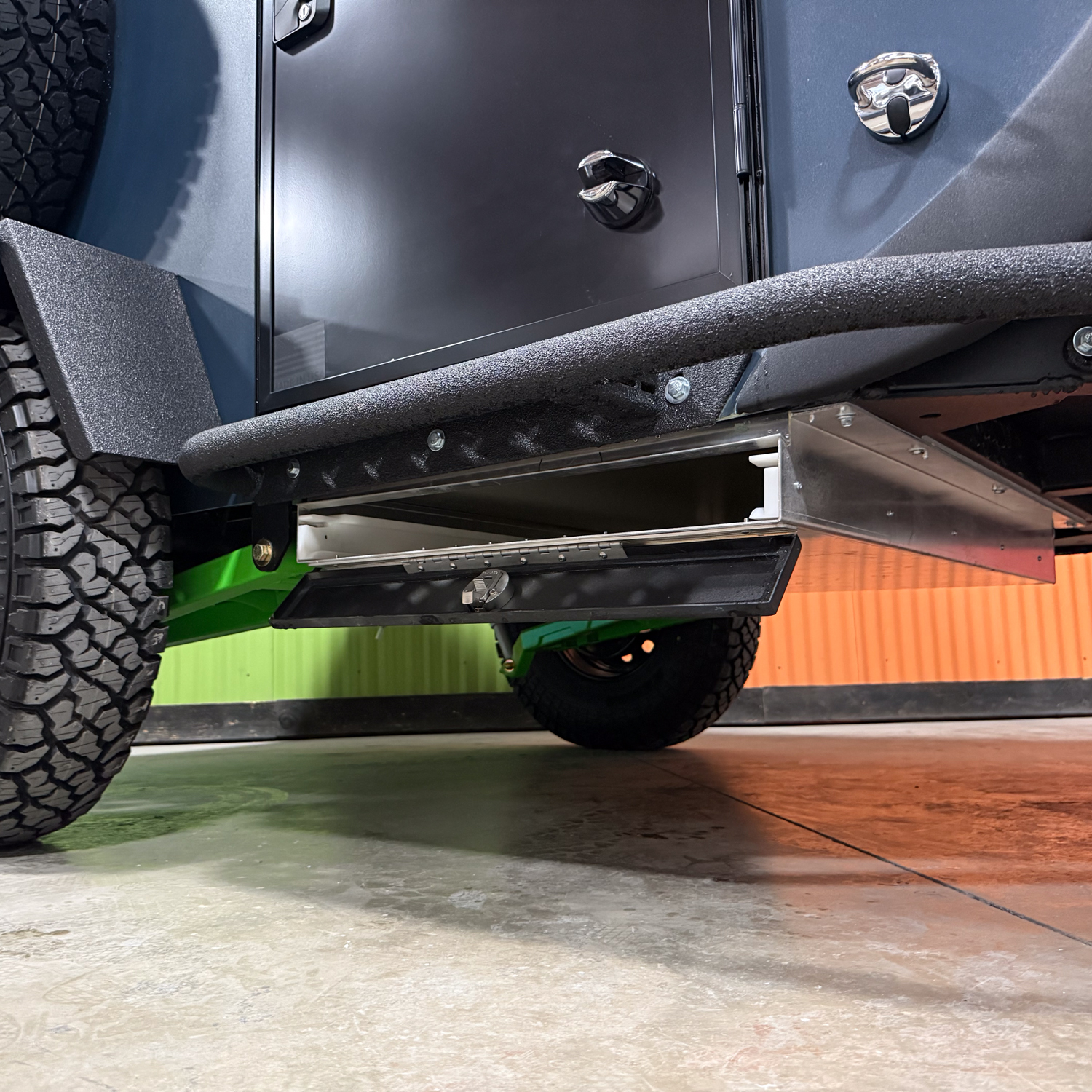

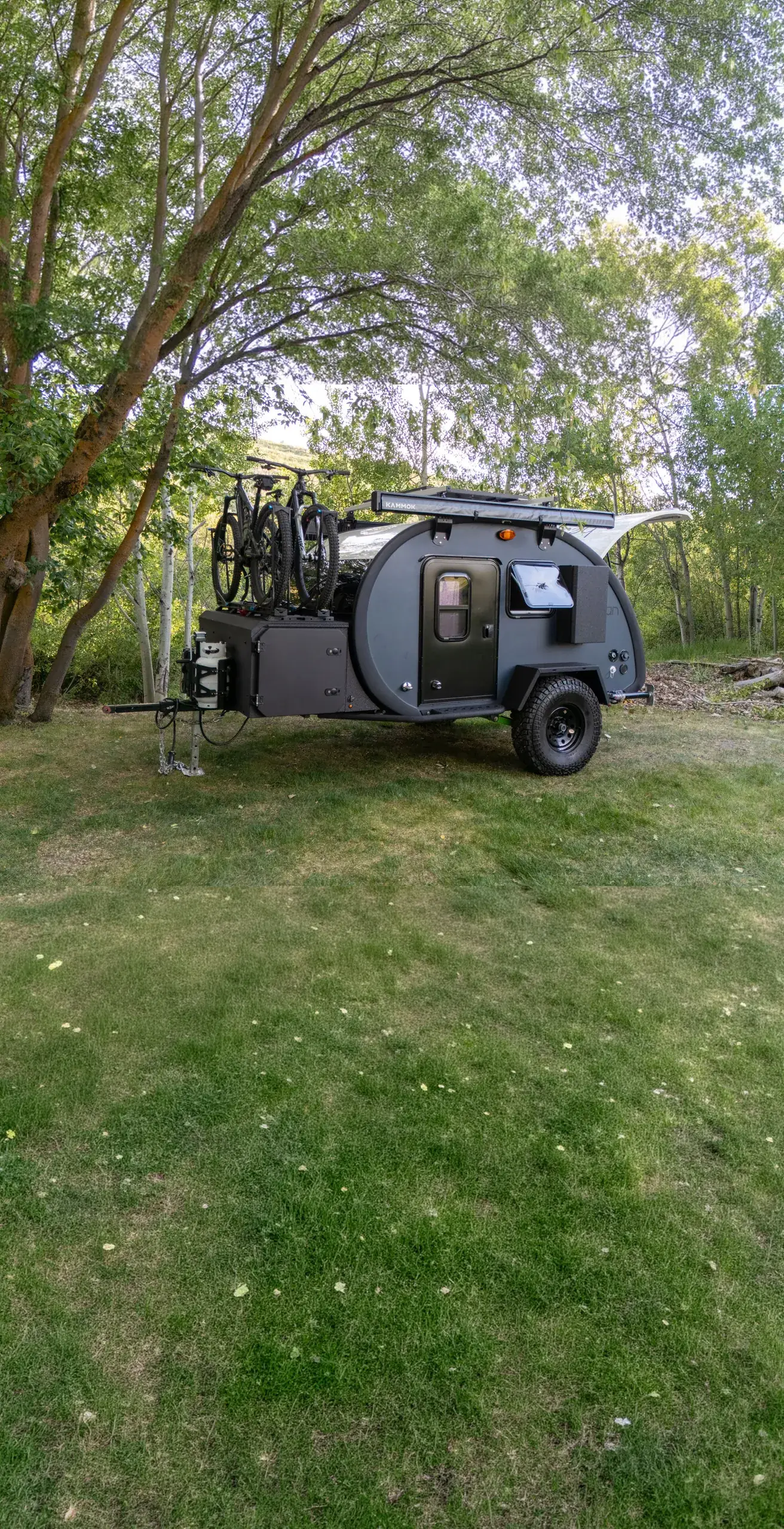

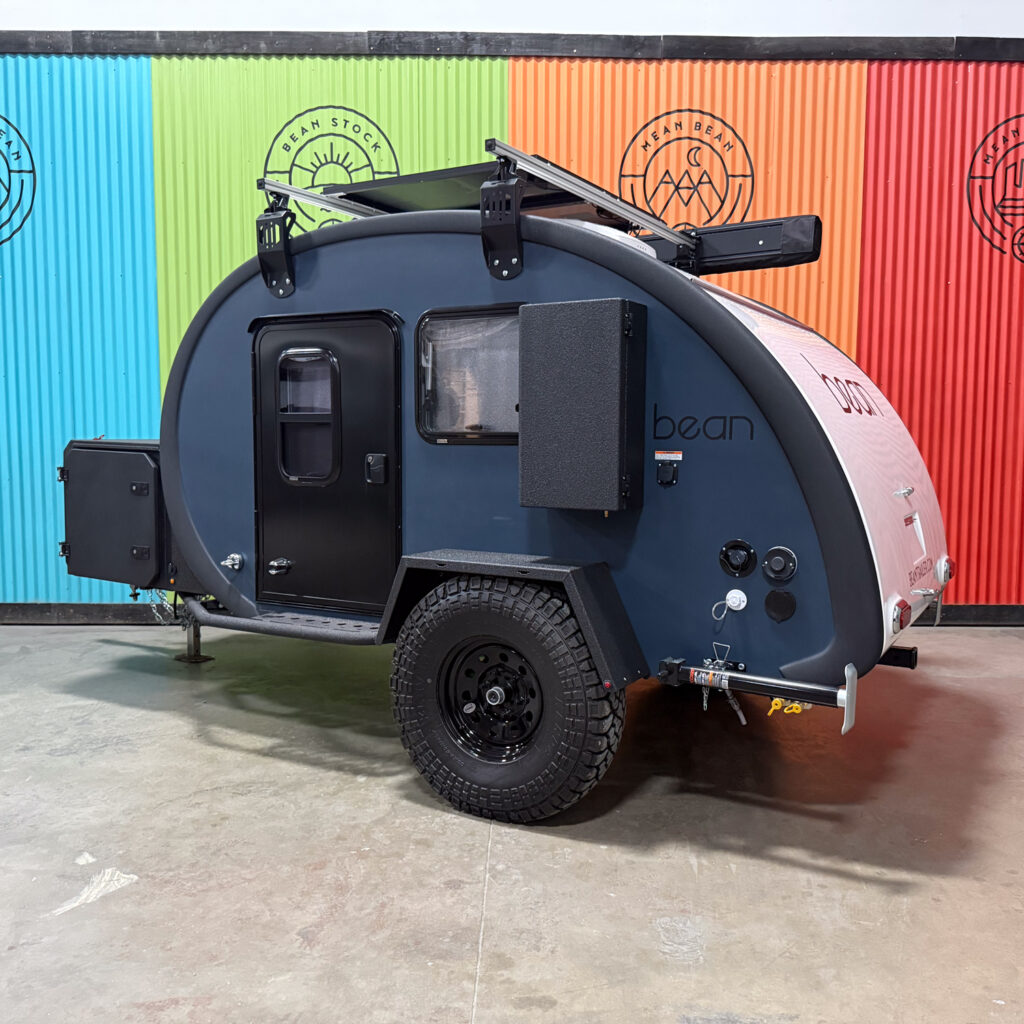

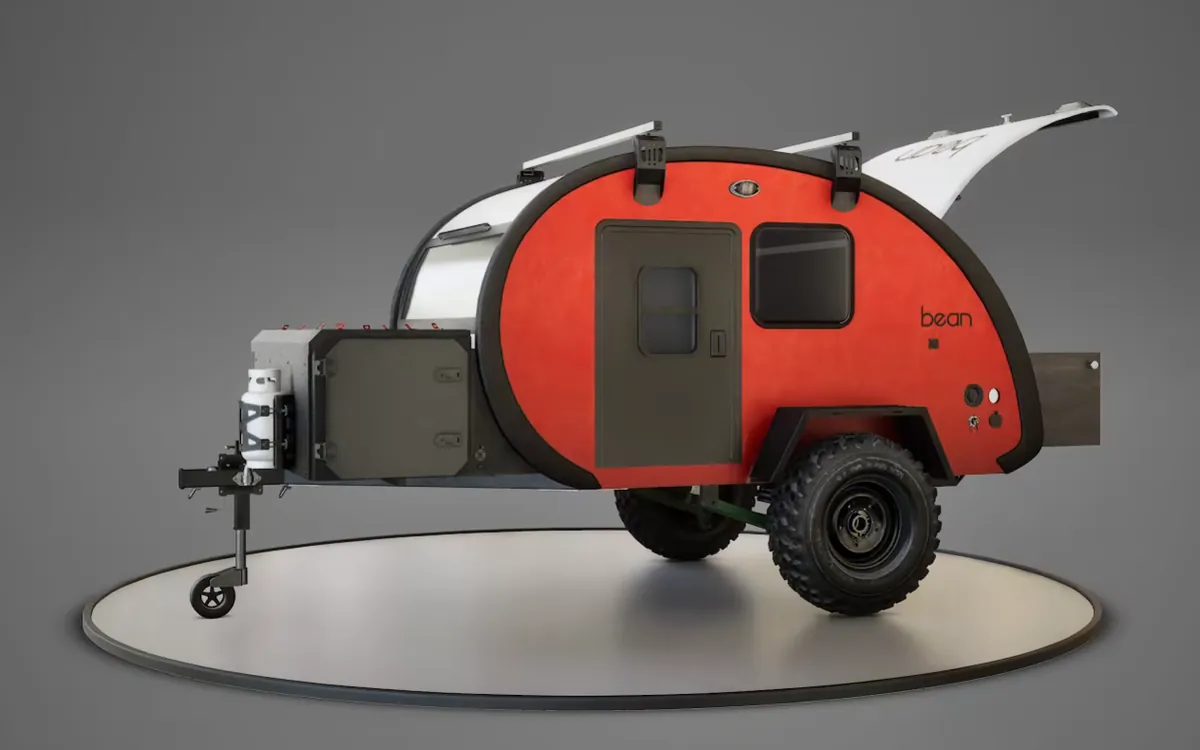

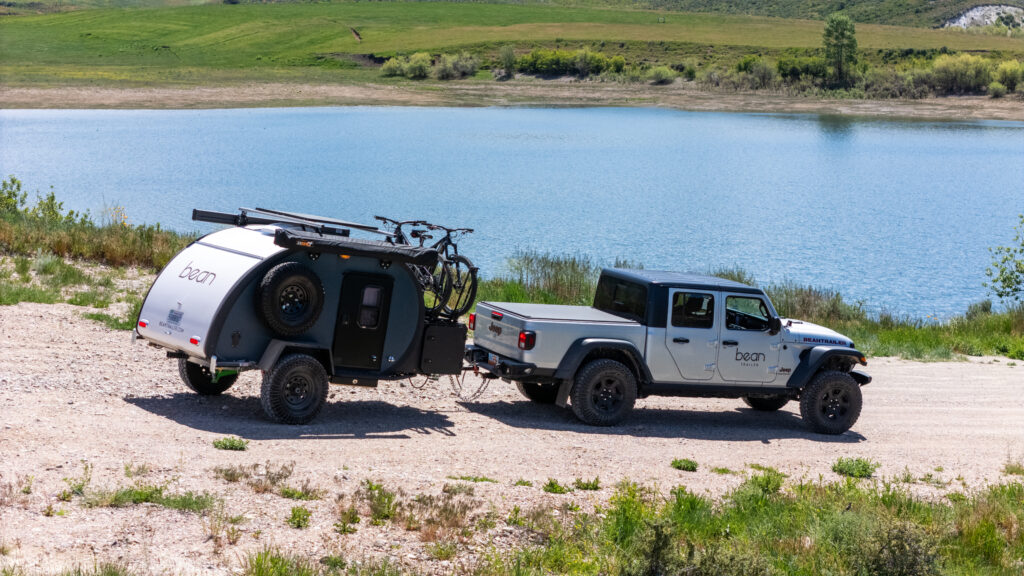

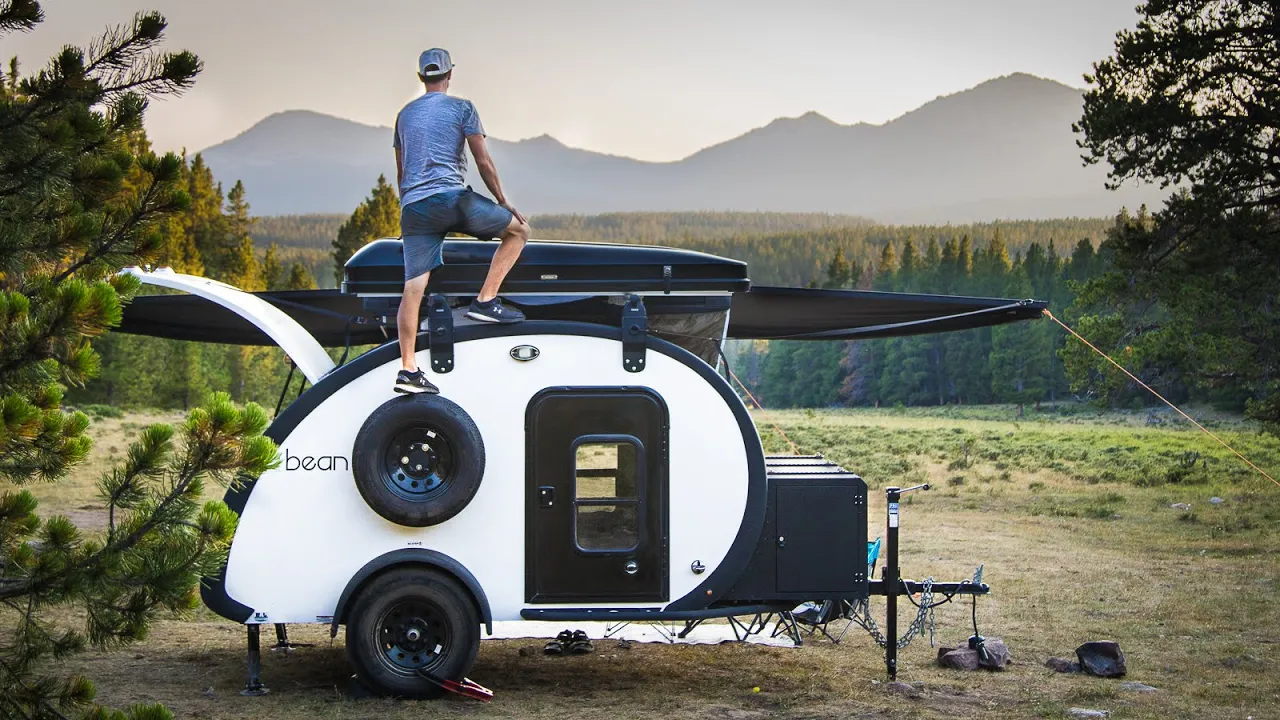

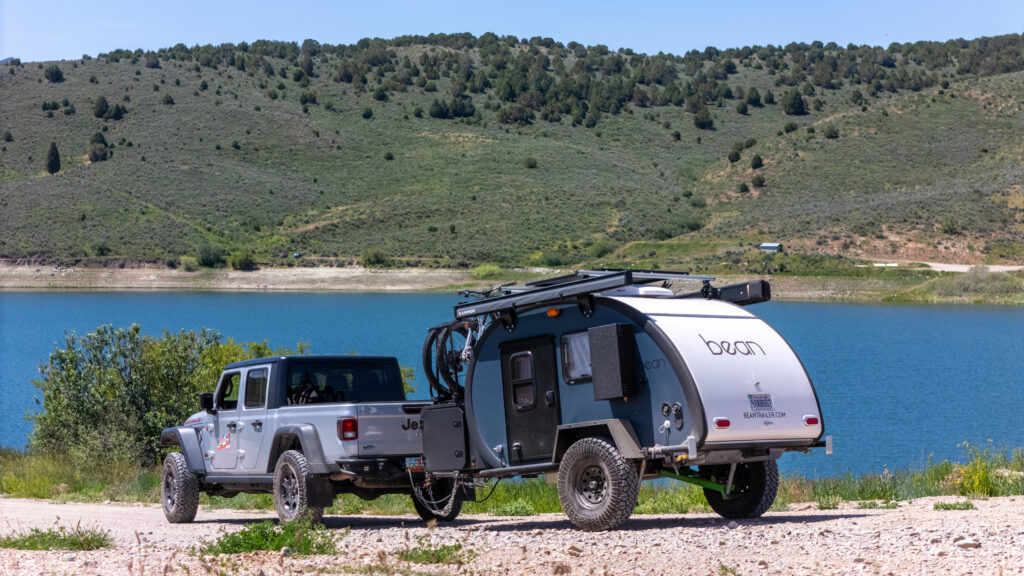

The Meaner Bean is our premium off-road teardrop trailer model, weighing in at 2000 lbs. For the overland adventurer looking to go where no trailer has gone before with greater safety and comfort. Among many modern features, this trailer has 17″ of ground clearance, a Timbren independent suspension system, Armadillo coated stand-on fiberglass fenders and can be upgraded with other options like rock sliders in order to add additional protection and accessibility.
If you’re ever traveling through Utah, be sure to swing by the Bean Trailer Factory in Salt Lake City and see why we have the best teardrop trailers in the country.
KEY SPECS

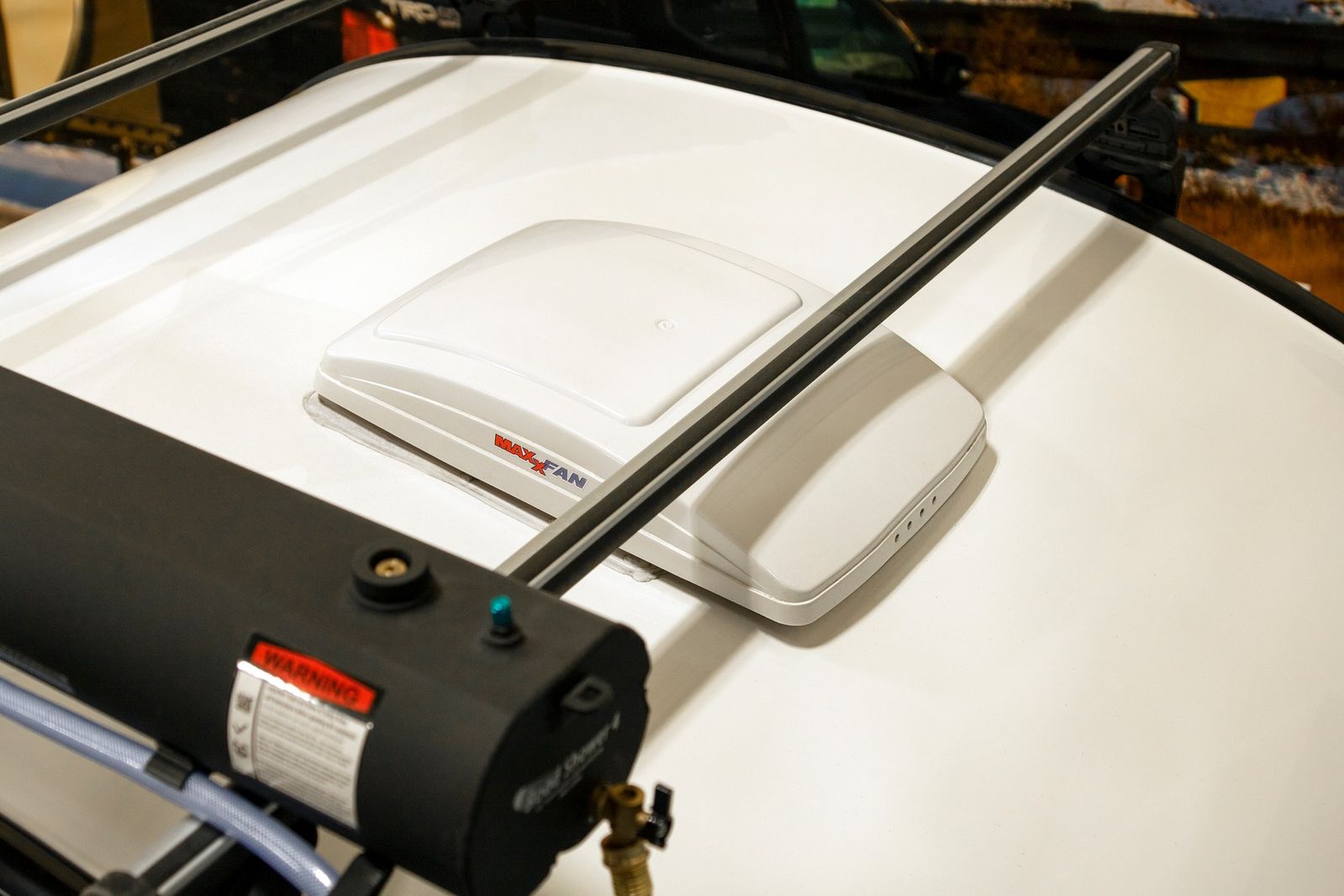

+ Maxx Fan
GALLEY & CABIN
LIMITED TIME PRICING STARTING AT: $26,490
INCLUDES THE FOLLOWING STANDARD FEATURES
CABIN

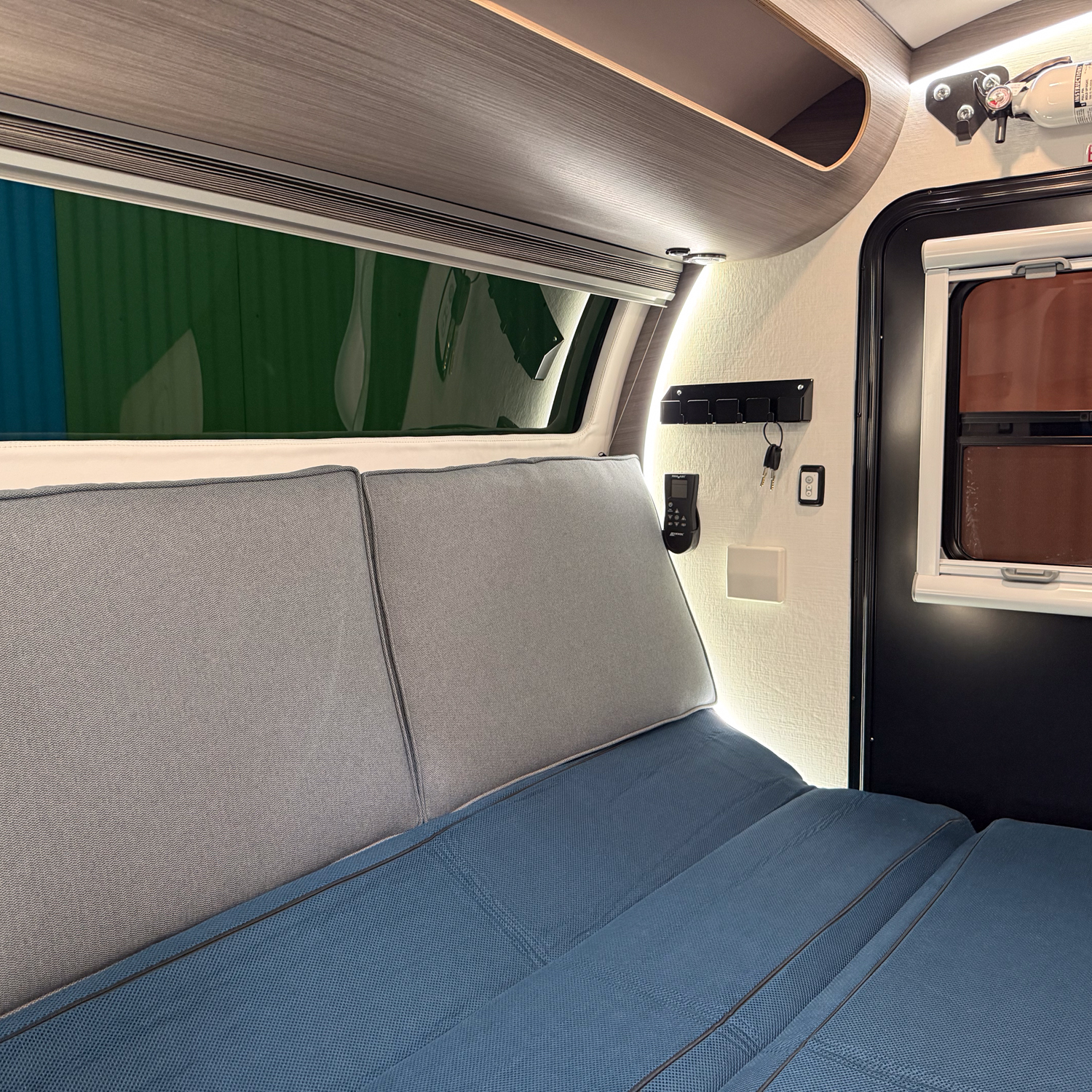

- 4 1/2″ Queen size foam mattress.
- Interior walls with stain and abrasion resistant wall coverings
- Insulated ceiling with soft touch vinyl headliner

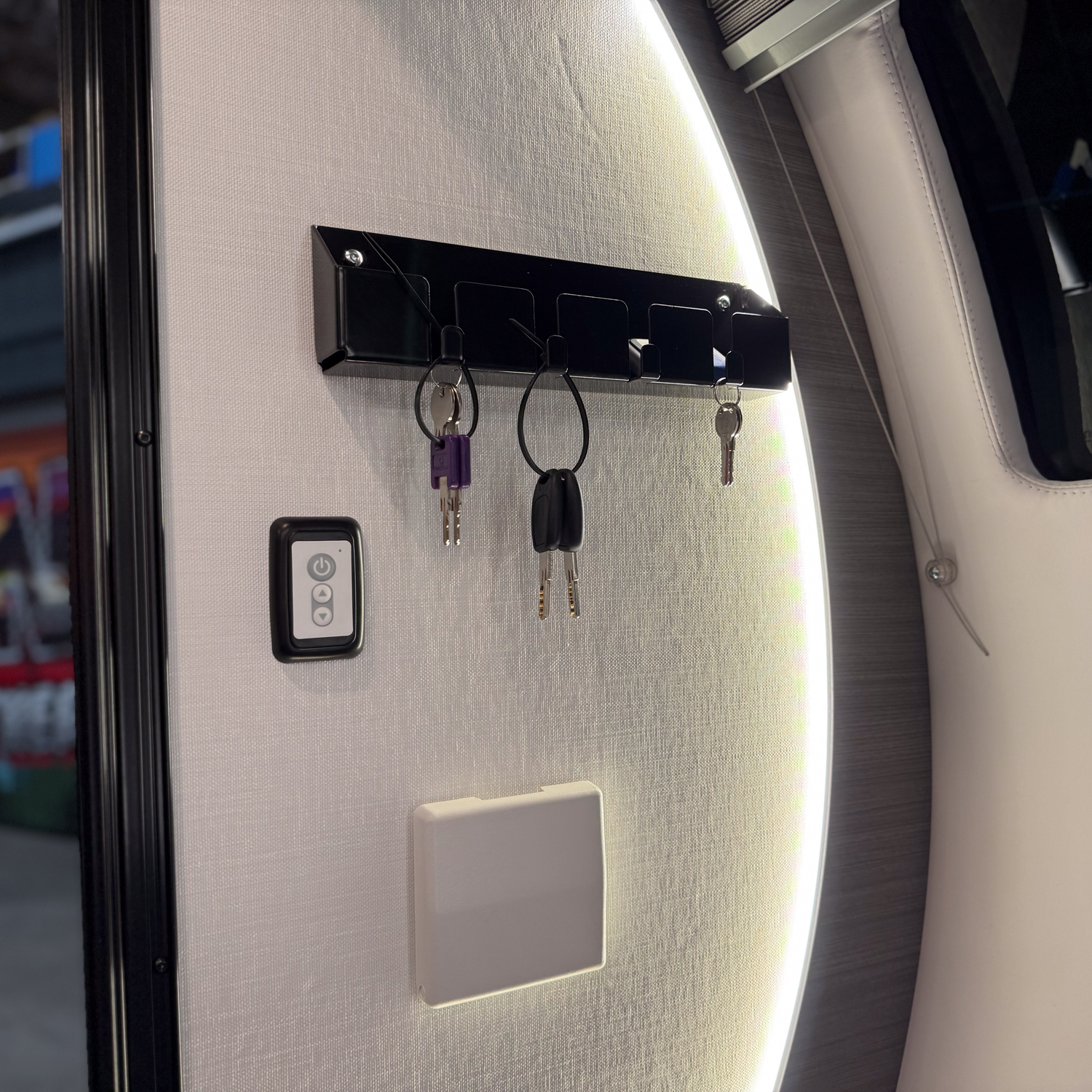

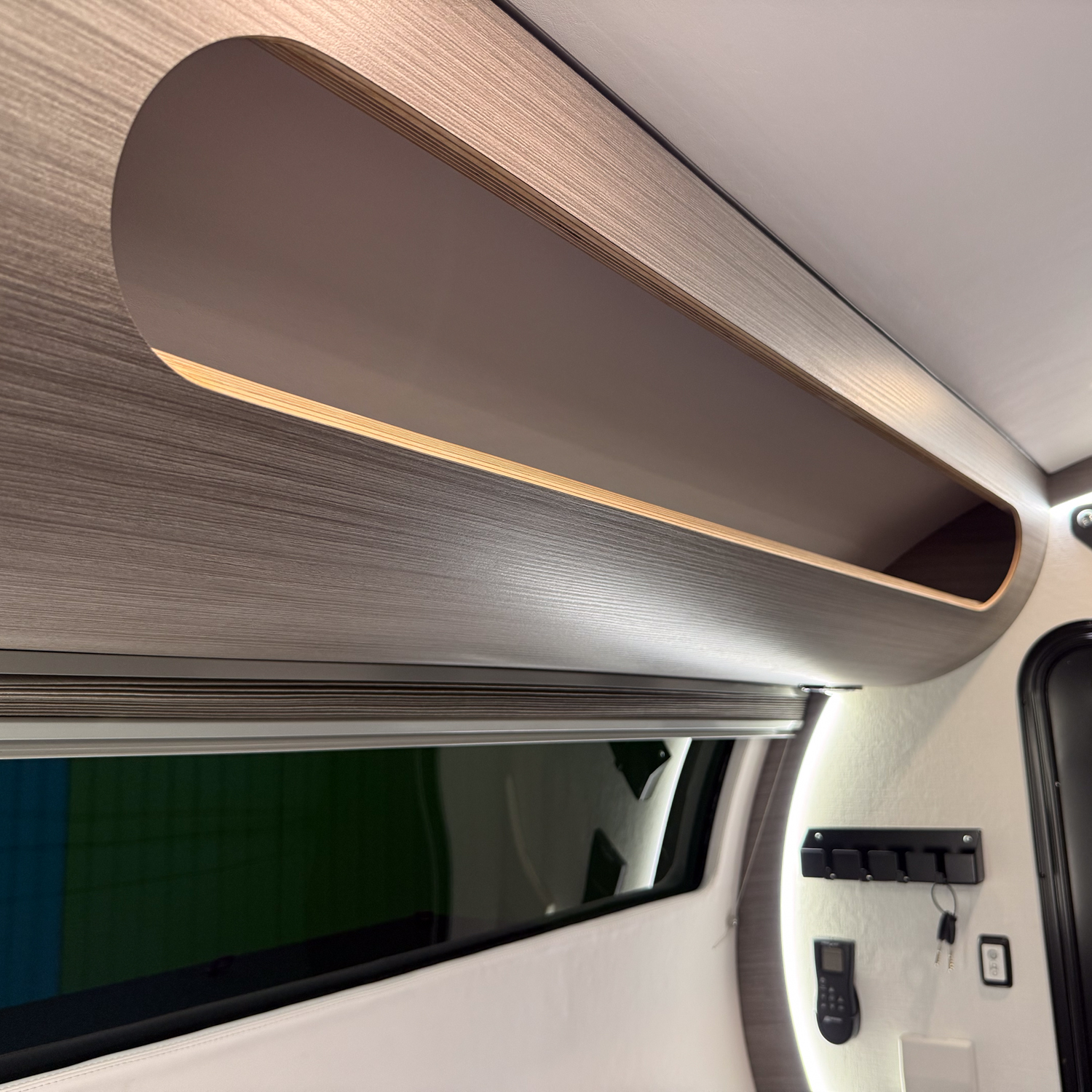

- Upper cubby with LED push-button down lighting & dual USB ports

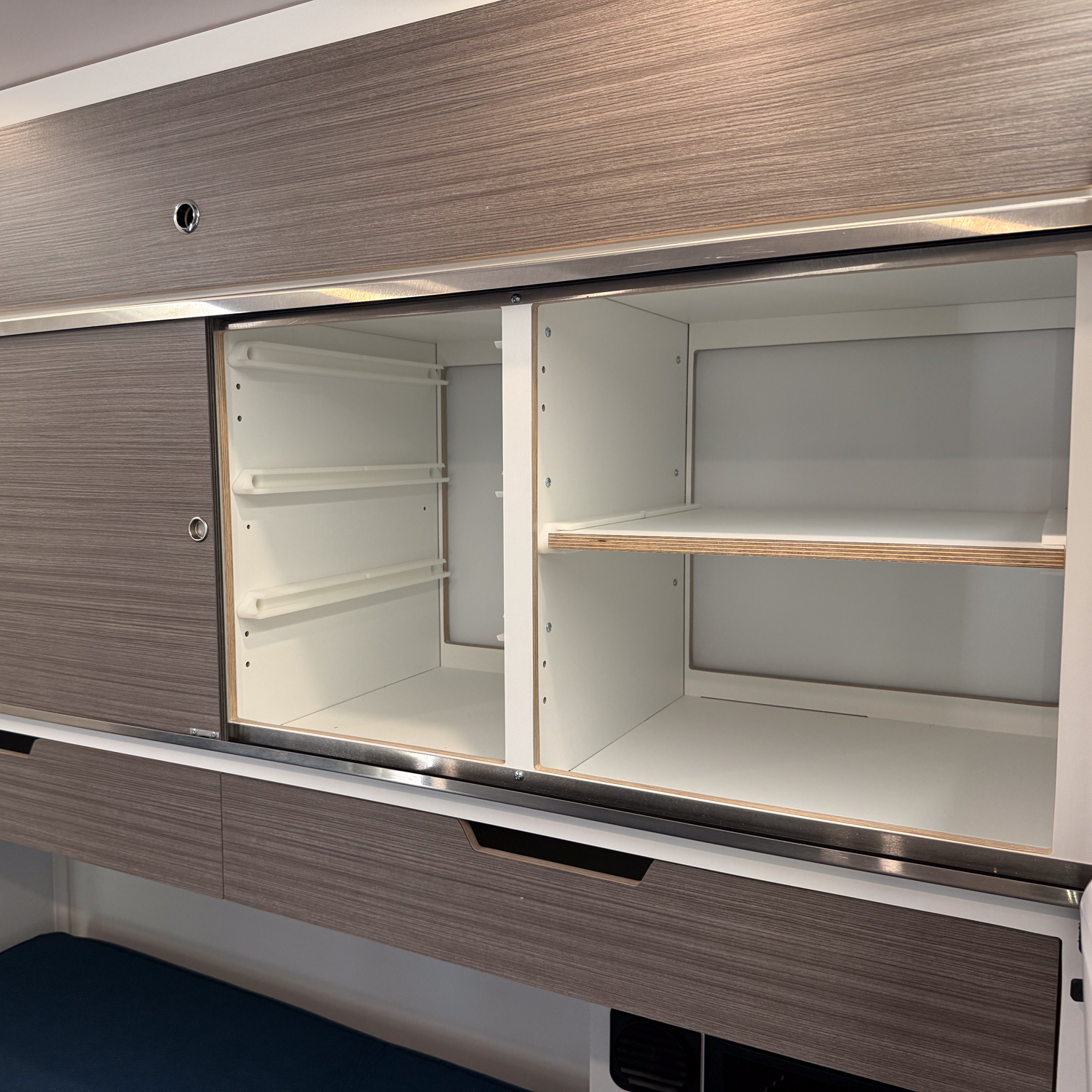

- (4) Plastic laminated interior cabinets with galley pass through
- TROFAST compatible shelving system
- Dimmable recessed lighting in inviting warm tone
- Large attic over cabinet doors

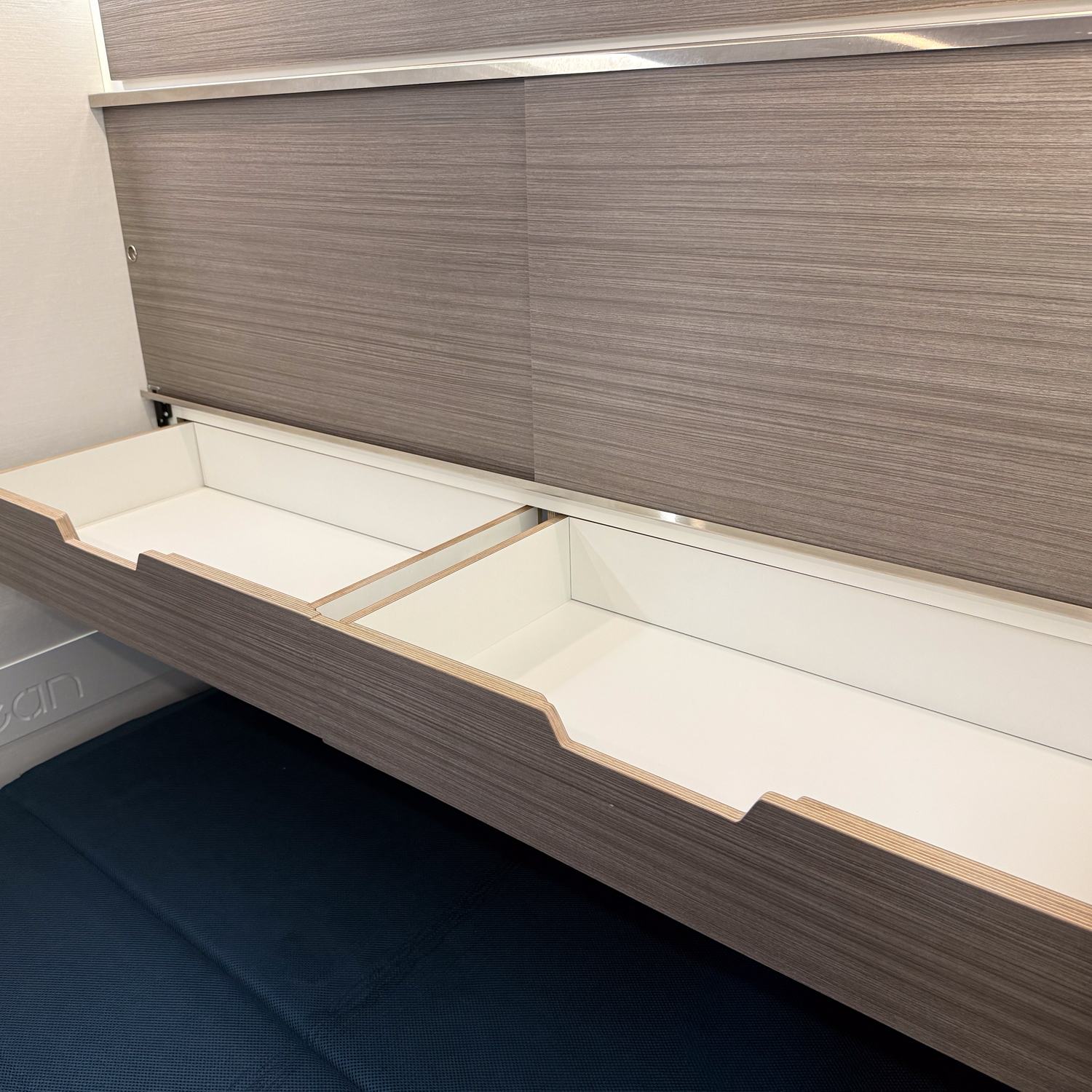

- (2) large drawers under cabinet doors
- 14″ roof vent
- Floor storage compartment with integrated lid
- (6) Floor-mounted D-rings
ELECTRICAL

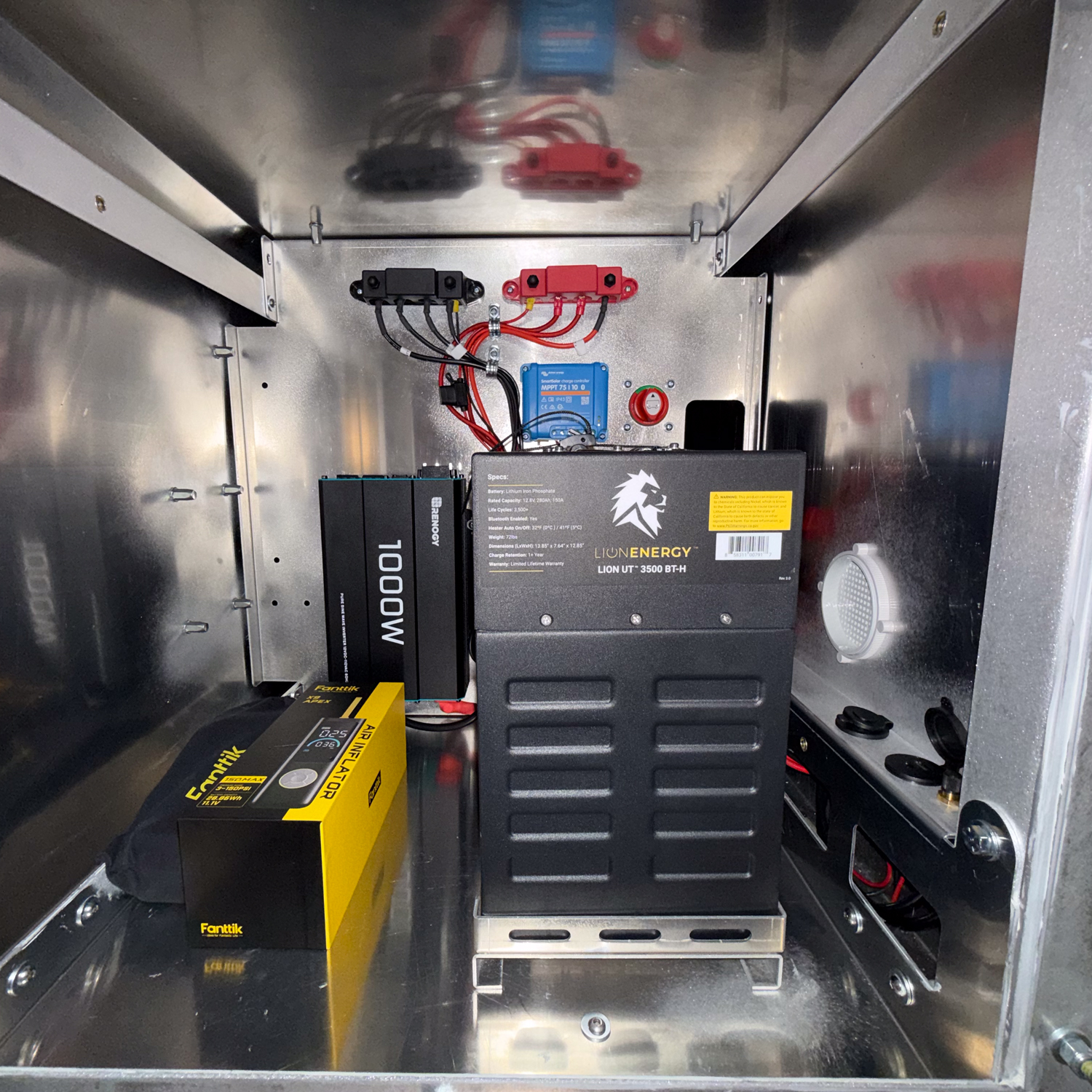

- 100 amp deep cycle AGM battery
- Power converter
- Shore power
- (2) AC wall plugs with USB plugs (galley and cabin)
- Solar power port
- LED tail lights and illuminated side markers
- License plate lighting
CHASSIS

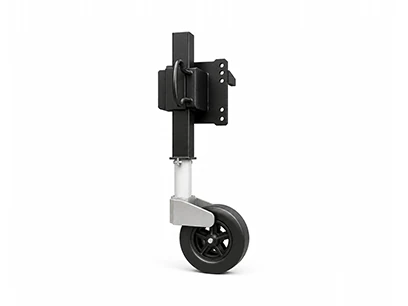

- Powder coated steel tube frame with Timbren 3500 HD axle less suspension and tongue, fixed 8,000 lbs jack
- 17” of ground clearance

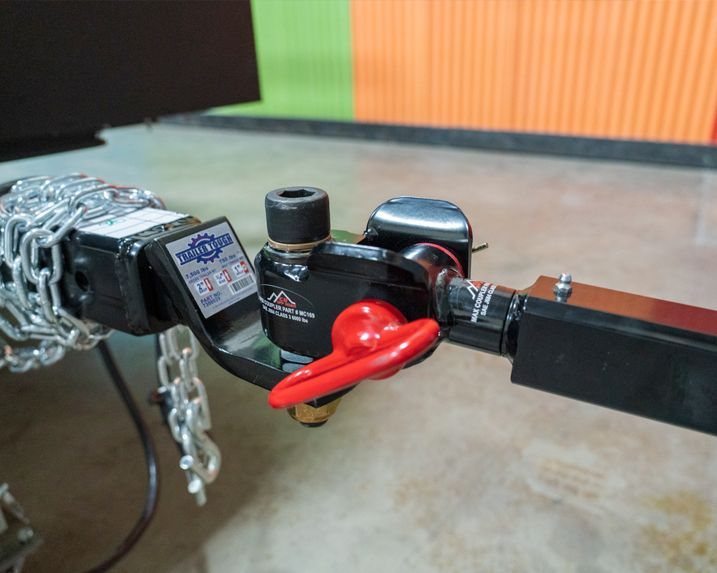

- Removable Fully Articulating Max Coupler Hitch
- 2″ receiver
- 15” steel wheels with 28.88 radial all-terrain tires
- 7 pin wiring harness

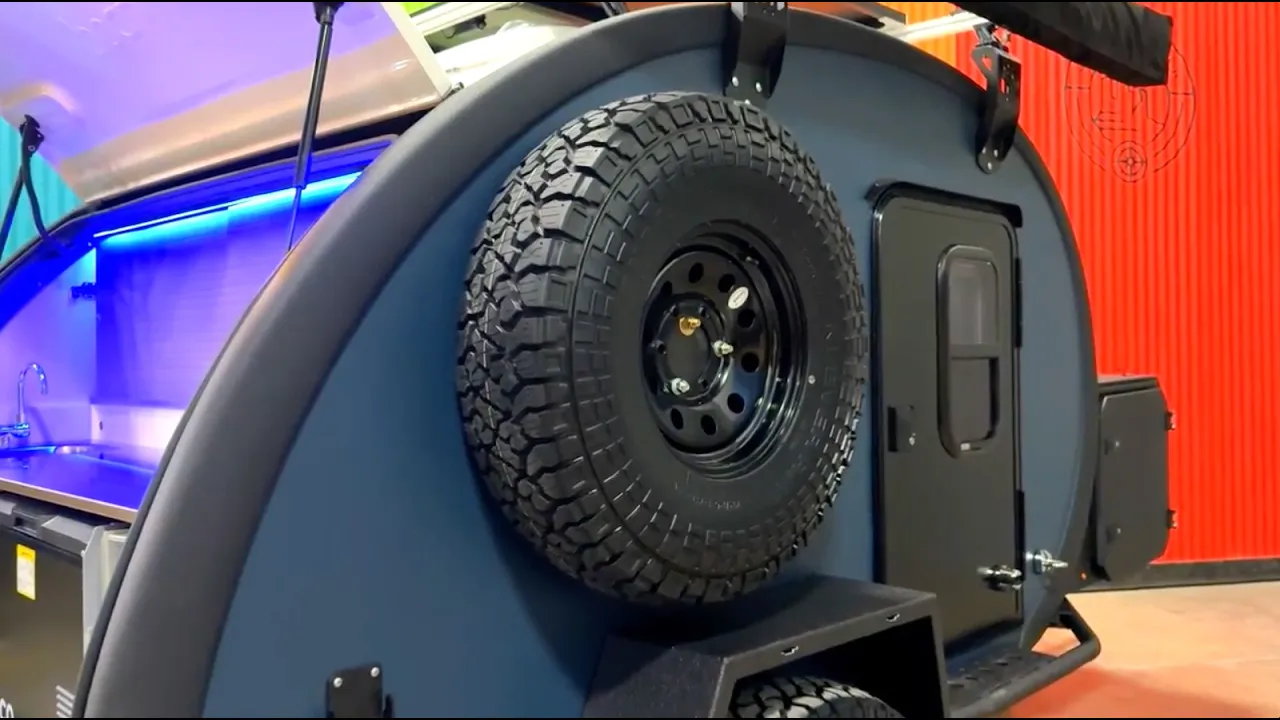

- Front mounted full-size spare tire

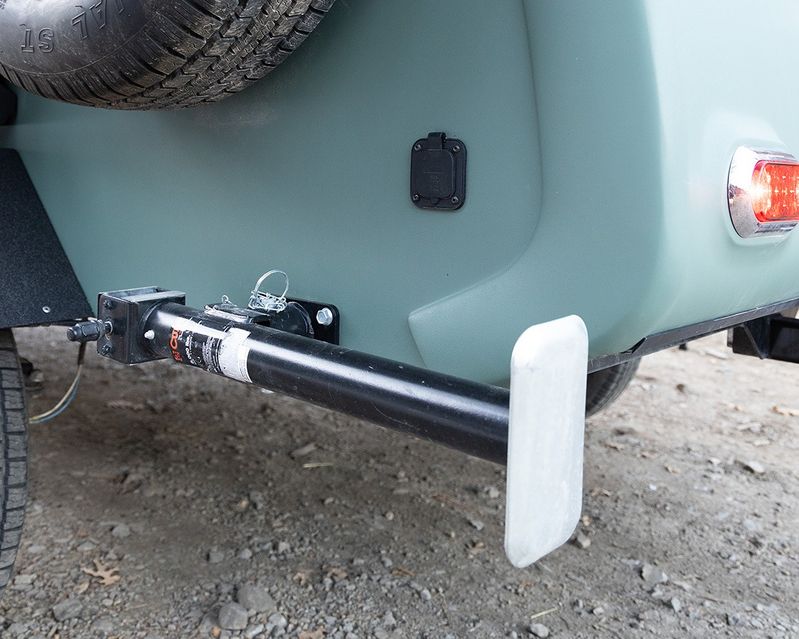

- 2 rear stabilizer jacks
- Breakaway braking system pre-wired for electronic braking
- Rear hitch receiver – 200 lb weight capacity
EXTERIOR
- One piece fiberglass shell with marine grade colored gelcoat finish
- Colored sidewalls, black endcaps, white roof, and white hatch
- Rugged black stand-on fiberglass fenders with slip/scuff resistant finish, and round side marker

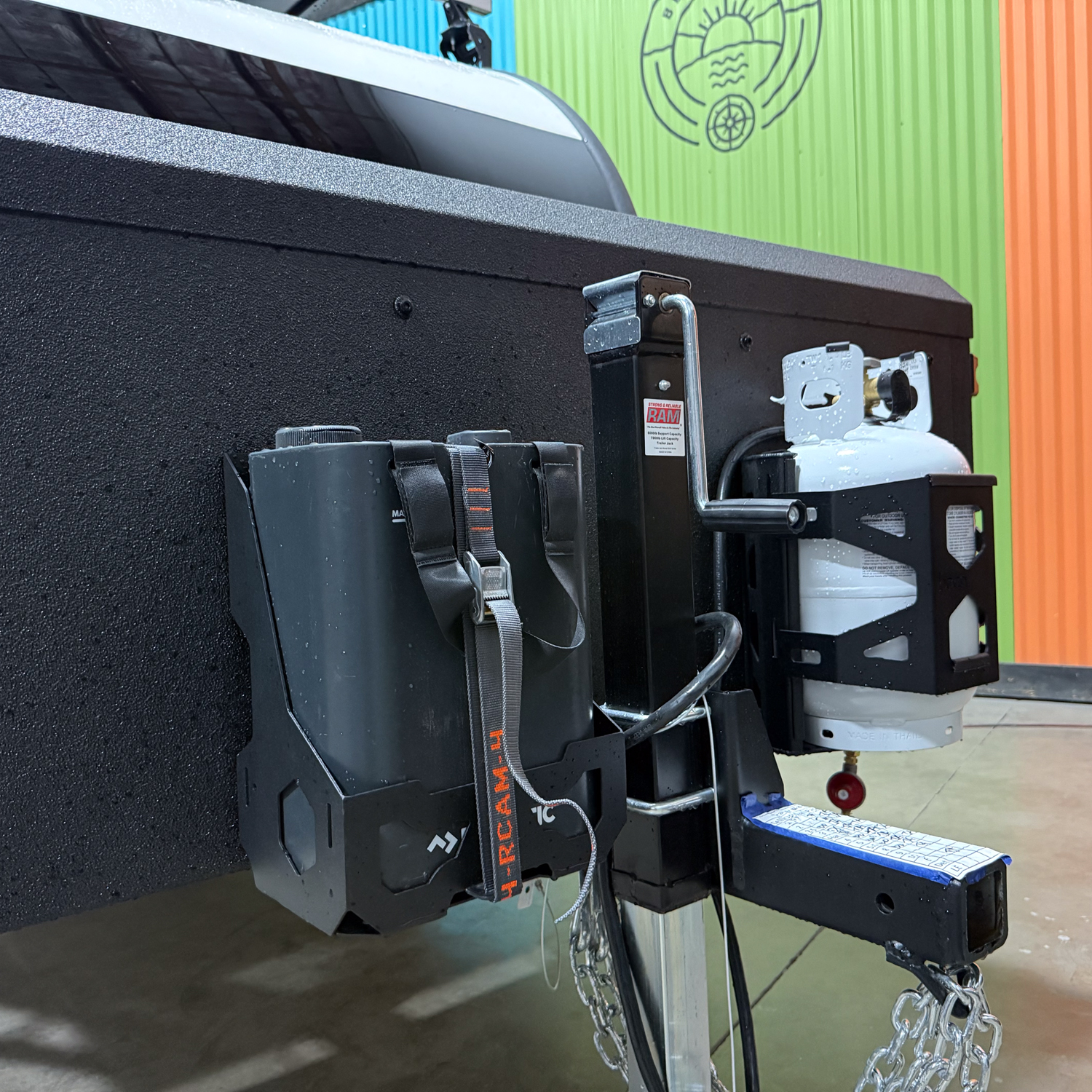

- Front storage rack

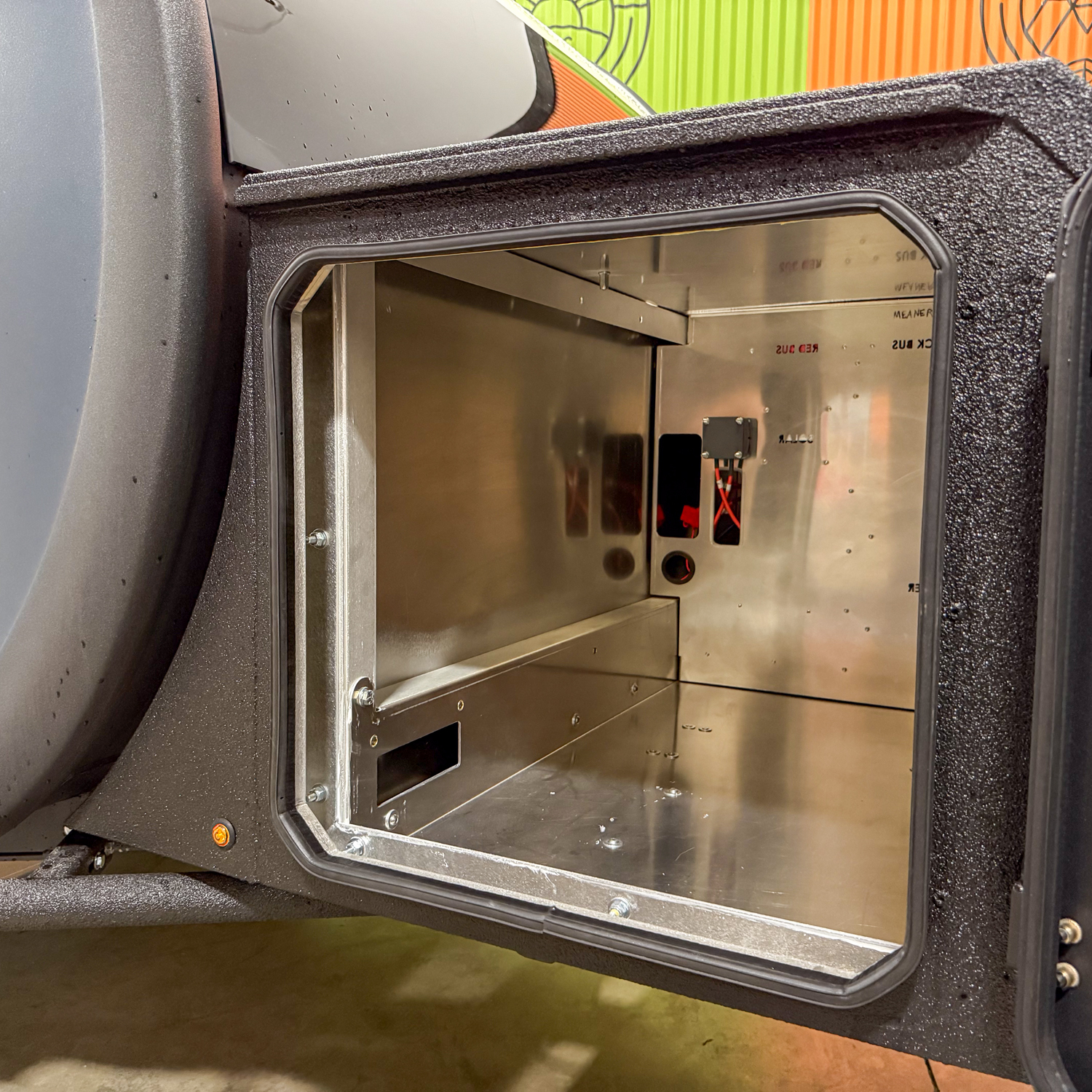

- Aluminum battery box

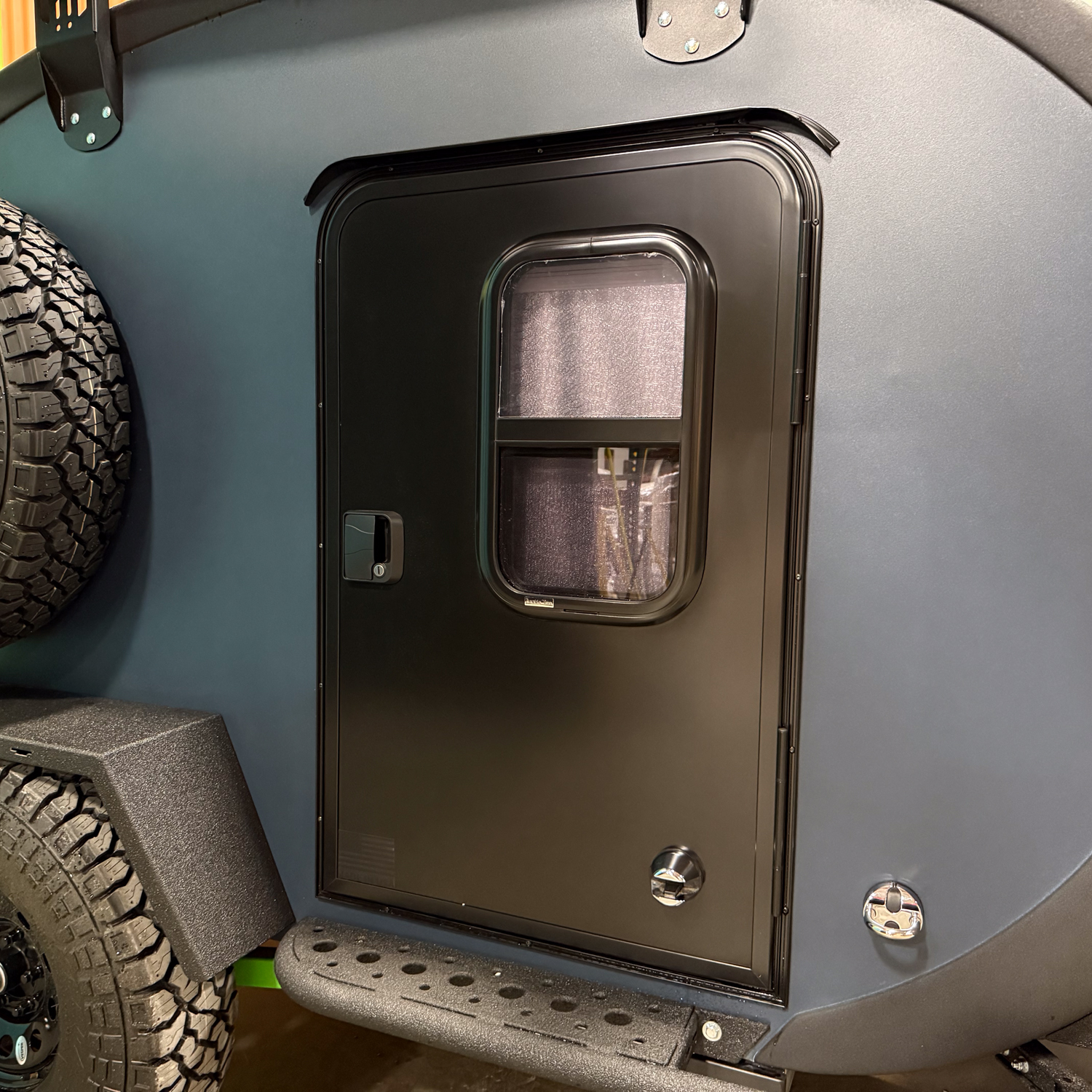

- (2) Black side entry doors with integrated port windows, circular shades, and screen doors

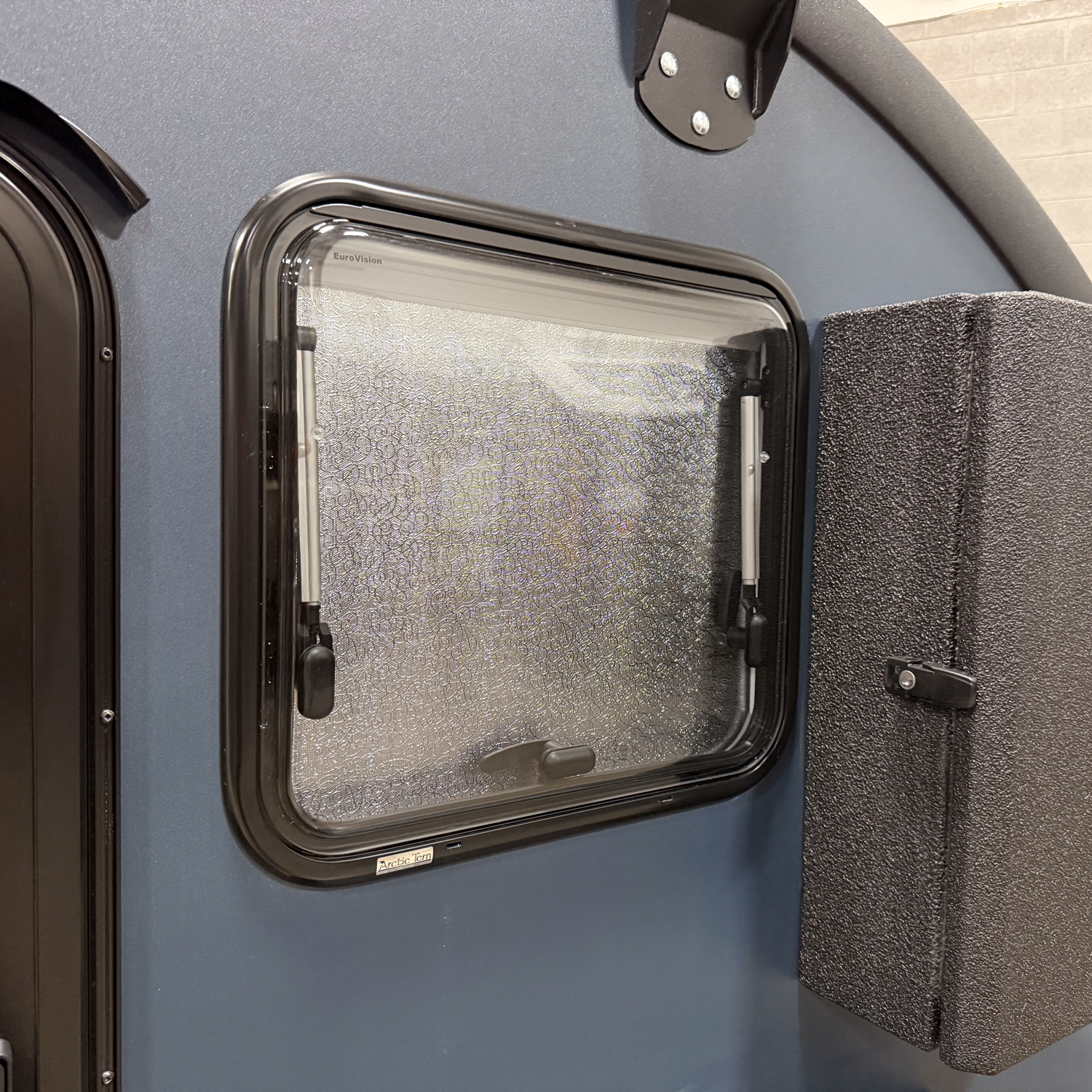

- Large operable window
- (2) Outdoor porch lights
- Rear galley hatch with integrated lift and latching system
STANDARD FEATURES + TIMBREN AXLE-LESS SUSPENSION
"For the road less traveled. For those seeking to take Bean farther than ever before."

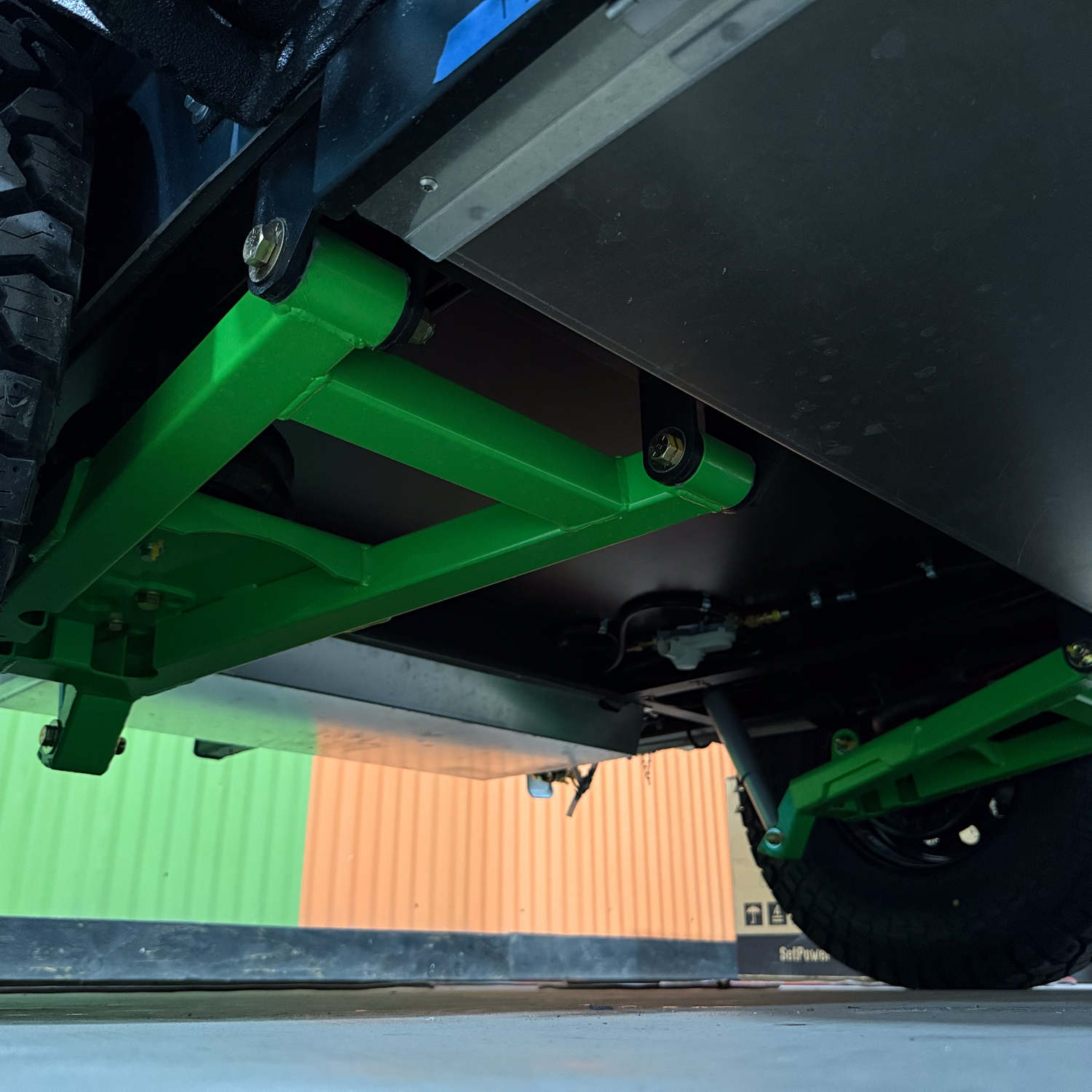

Timbren’s Axle-Less trailer suspension system is a great alternative to torsion axles. While both systems allow either side of the trailer’s suspension to operate independently, only Axle-Less suspensions are actually separate units. Torsion axles still require a bar that spans the bottom of your trailer, whereas Timbren’s system eliminates the need for a thru axle – giving you the same amount of ground clearance from the front of your trailer to the rear. Axle-Less suspensions operate in a smoother, less stressful manner than torsion axles. Torsion axles use a twisting motion, where the bar inside the axle tube rolls against rubber cords or a rubber wall to create compression and resistance. The up-and-down motion of the main spring and the side-to-side motion of the rebound spring in Timbren’s Axle-Less suspension work together to provide smooth and consistent compression.
ⓘ TIMBREN INDUSTRIES
STANDARD LAMINATES
Wedding Cake
Tailgating
Sleeping In
Morris Oak
($199 Upgrade)
STANDARD RAPTOR COLORS
Choose a trim color other than black for $500! The sidewalls are coated with the Raptor Liner color of your choice:
White
Beige
Blue
Green
Yellow
Flame Red
Light Grey
Light Brown
Navy Blue
Pine Green
Orange
Black
Basalt Grey
Sepia Brown
Light Green
Olive Green
Custom Trim
+$500
STANDARD COLOR EXAMPLES

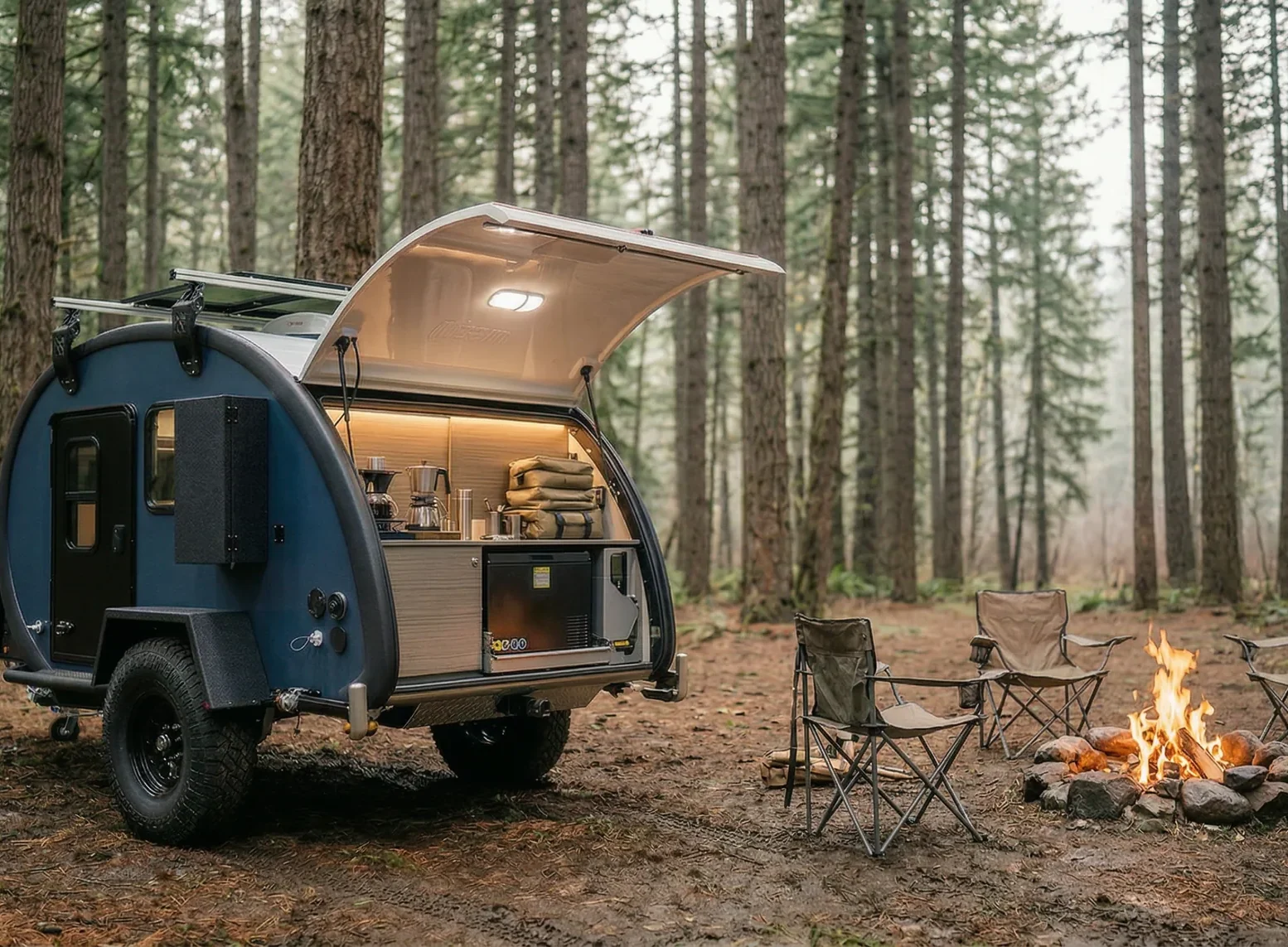

GALLEY OPTIONS
TAKE YOUR BEAN TO THE NEXT LEVEL
Standard features+
- Hatch mounted dome light

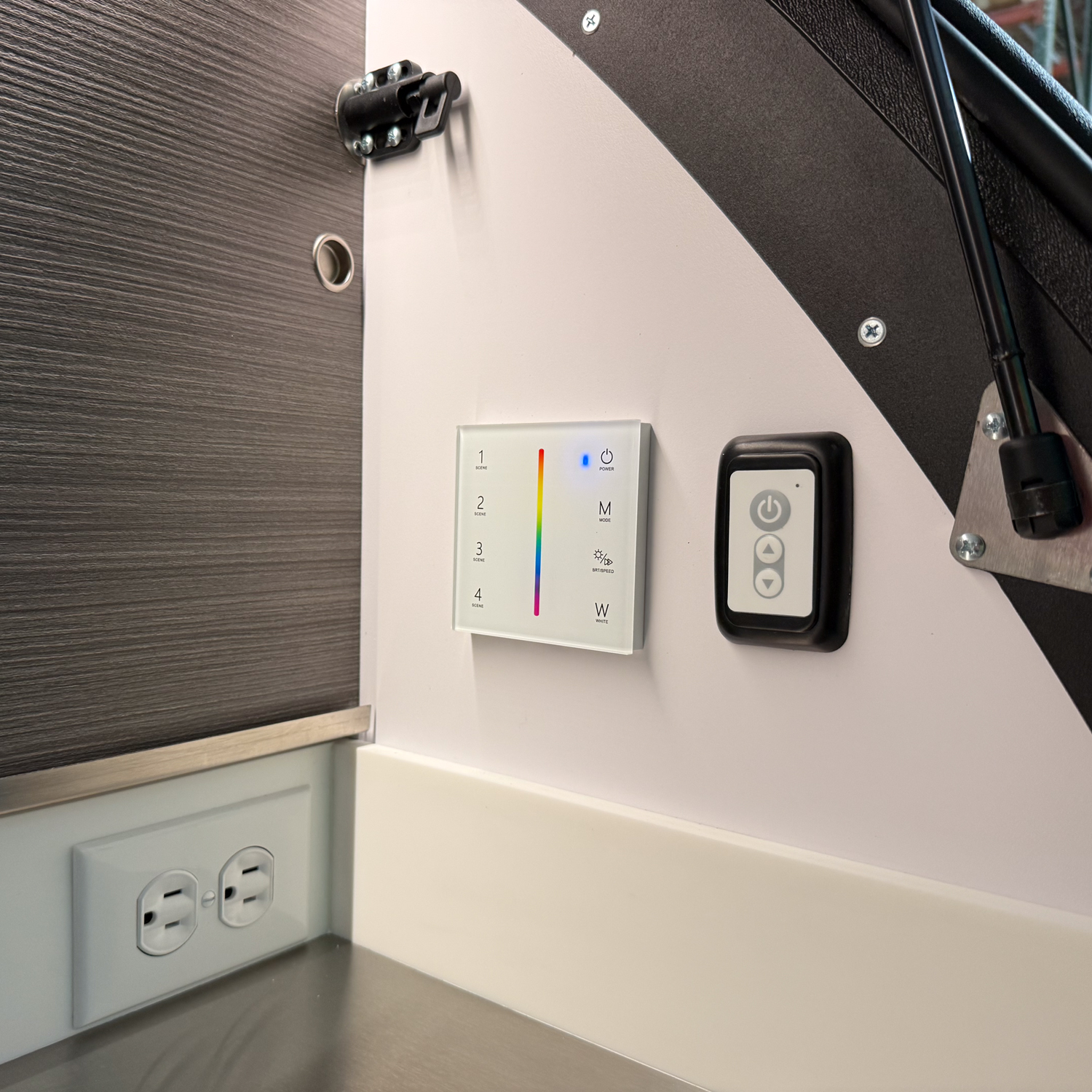

- RGB strip lighting with touch controller
- Paper towel dispenser
-Stainless bottom edge trim
- White plastic laminate counter and solid surface backsplash
- Lower storage area with washable surfaces
- (2) D-Ring tie downs
Standard features+
- Hatch mounted dome light
- RGB strip lighting with touch controller
- Paper towel dispenser
-Stainless bottom edge trim
- White Plastic laminate counter and solid surface backsplash
- Lower storage area with washable surfaces

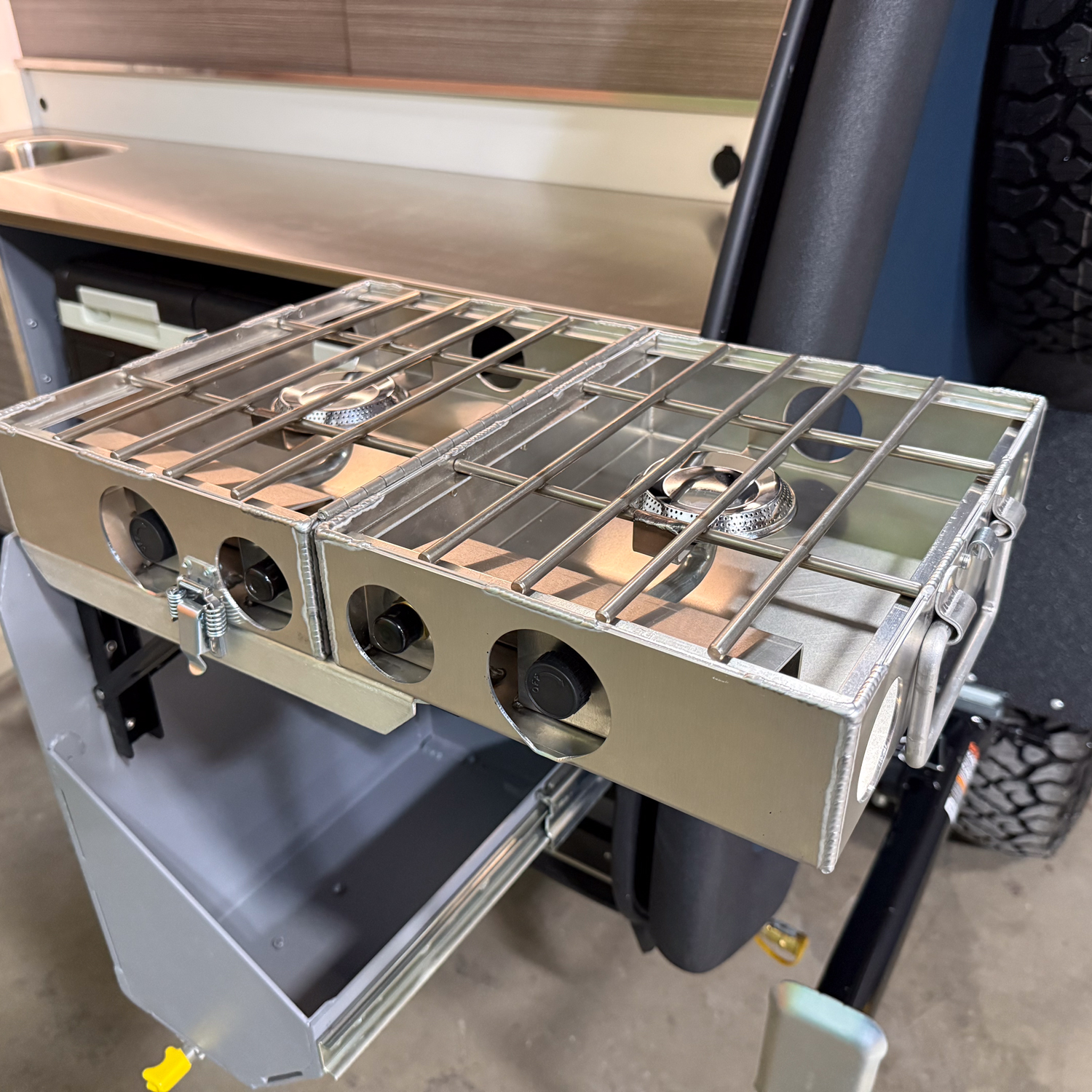

- 18" Partner Steel two burner stove with rack-out
- Rack-out basin with collapsible/removable sink
- (2) 7 gallon Aquatainer water tanks
- Aluminum cooler/fridge rack out (Accomdddates 30 QT Fridge/Freezer)

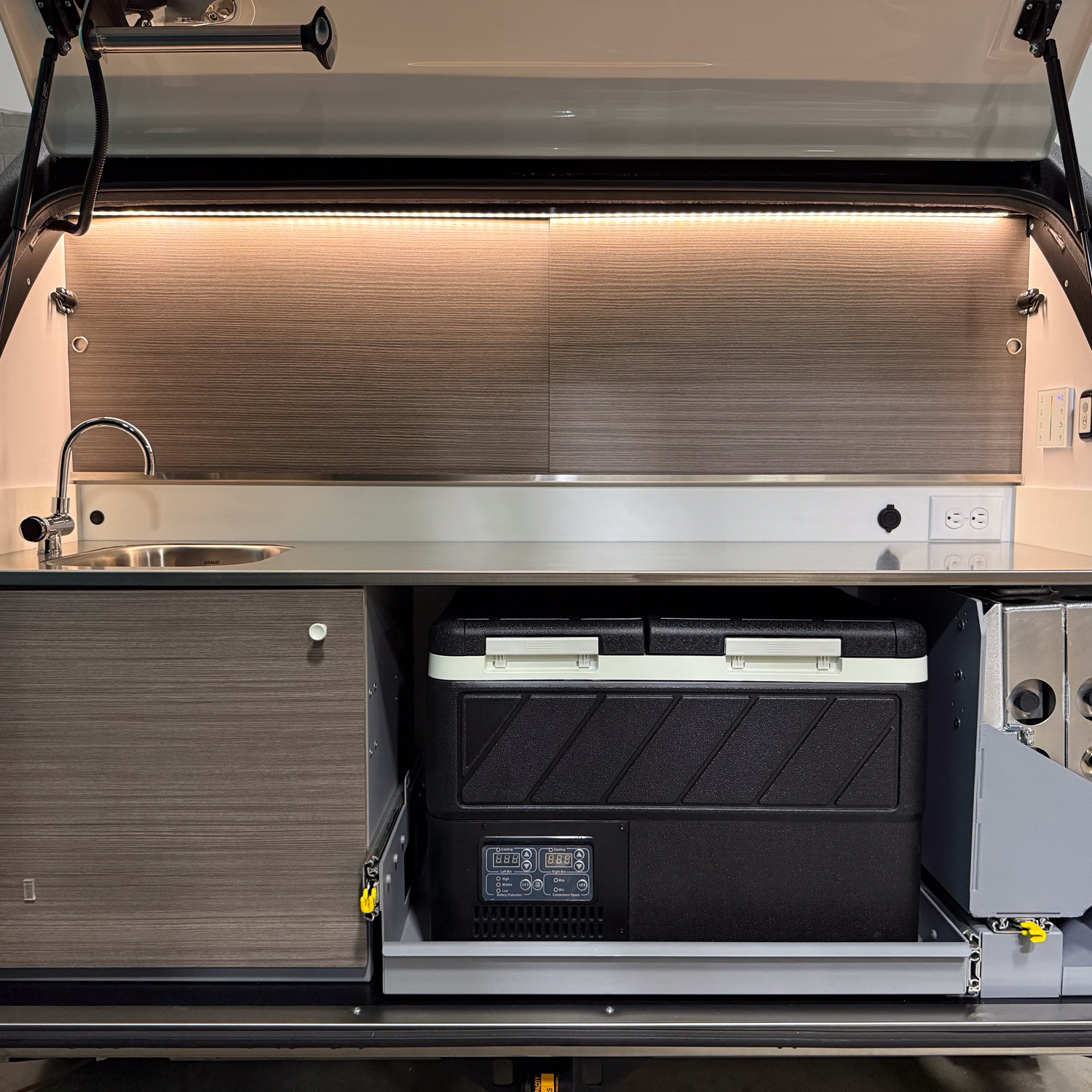

Standard features+
- Hatch mounted dome light
- RGB strip lighting with touch controller
- Paper towel dispenser
- Stainless bottom edge trim
- Stainless steel counter and solid surface backsplash
- Lower storage area with washable surfaces
- 18" Partner Steel two burner stove with rack-out.

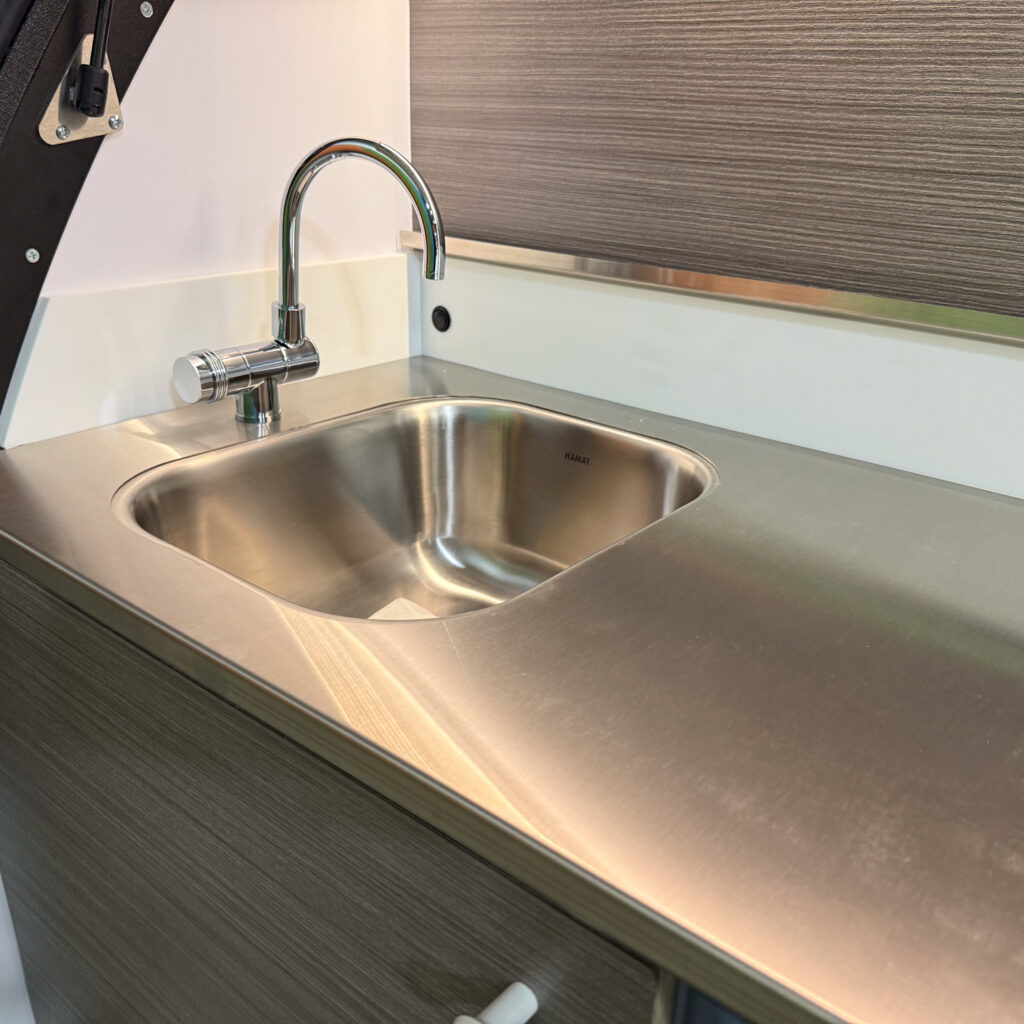

- Center mounted stainless steel sink with folding faucet
- 18 gallon water tank, under frame mounted with aluminum skid plate
- Filter and pump
- Powder coated cooler/fridge rack out (Accommodates 43 QT Fridge/Freezer)

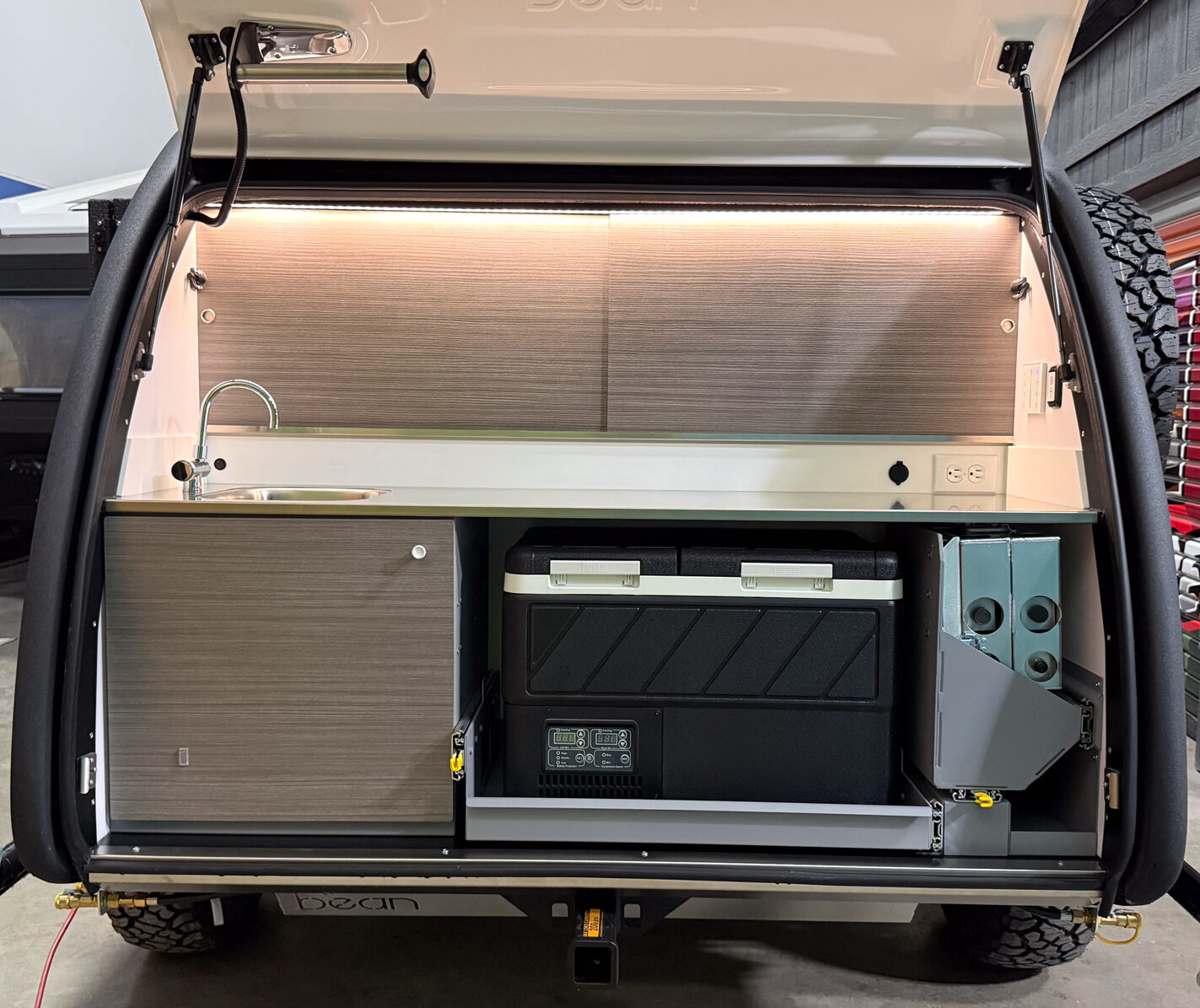

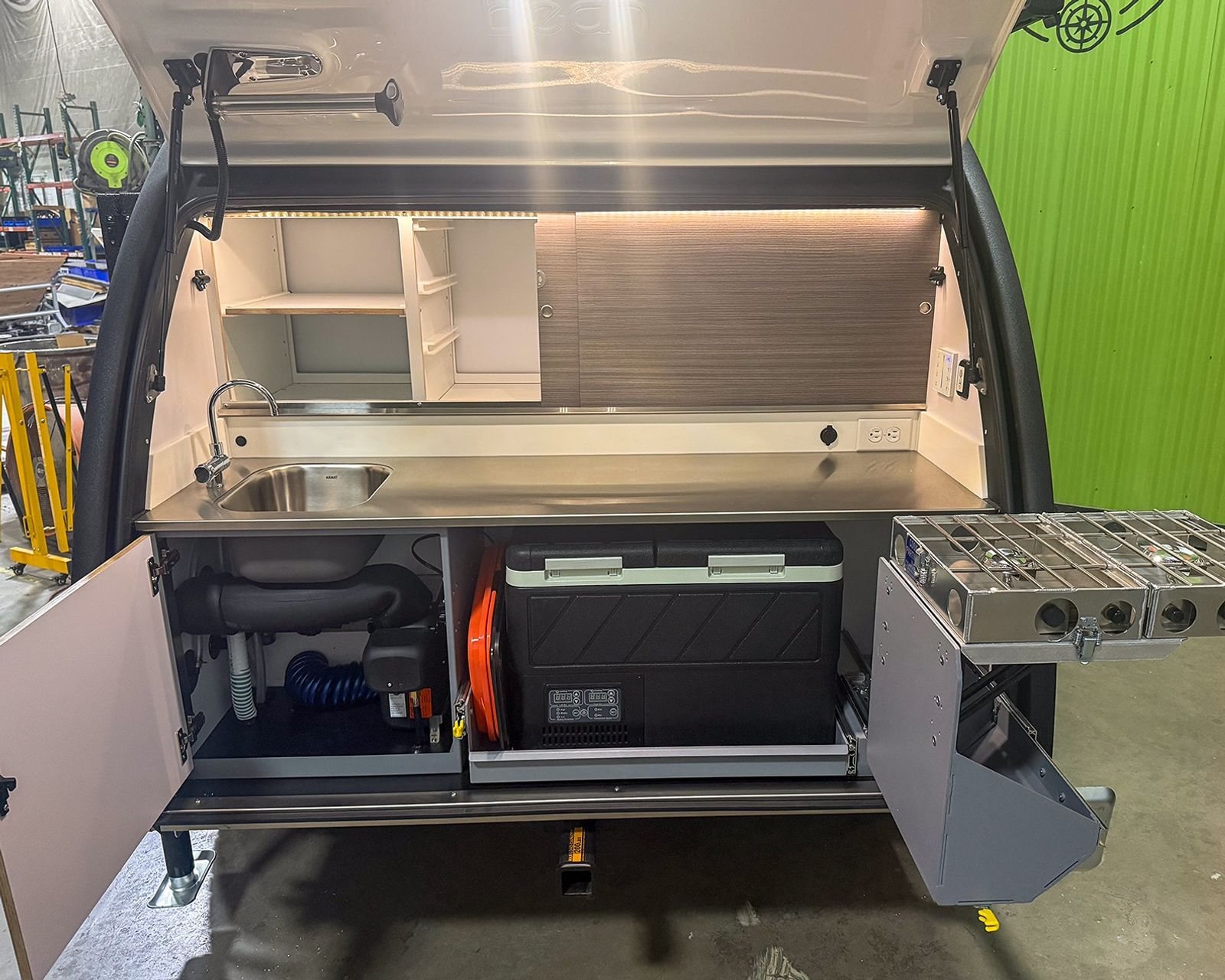

Standard features+
- Hatch mounted dome light
- RGB strip lighting with touch controller
- Paper towel dispenser
- Stainless bottom edge trim
- Stainless steel counter and solid surface backsplash
- Lower storage area with washable surfaces
- 18" Partner Steel two burner stove with rack-out.
- Left mounted stainless steel sink, with folding/swivel faucet
- 18 gallon water tank, under frame mounted with aluminum skid plate
- Filter and pump
- Powder coated cooler/fridge rack-out (Accommodates larger 45 QT Fridge/Freezer)
TRAILER UPGRADES
Spray Port
$350
The spray port is a great option for people who want the ability to bring pressurized water to the road. Instantly spray off totes, coolers, bikes and other camp accessories by simply connecting the coil hose. This option is only available with the Premium and Premium Plus galley options.
Awning Annex Accessory
$625
For the camper who plans to utilize Bean beyond a weekend getaway, we’re proud to release our custom annex, the next best thing since our 23 Zero 180° awning. Combine the two upgrades for even more additional coverage from the elements, privacy when you need it, and possibly even as a personal shower stall. The options are endless!

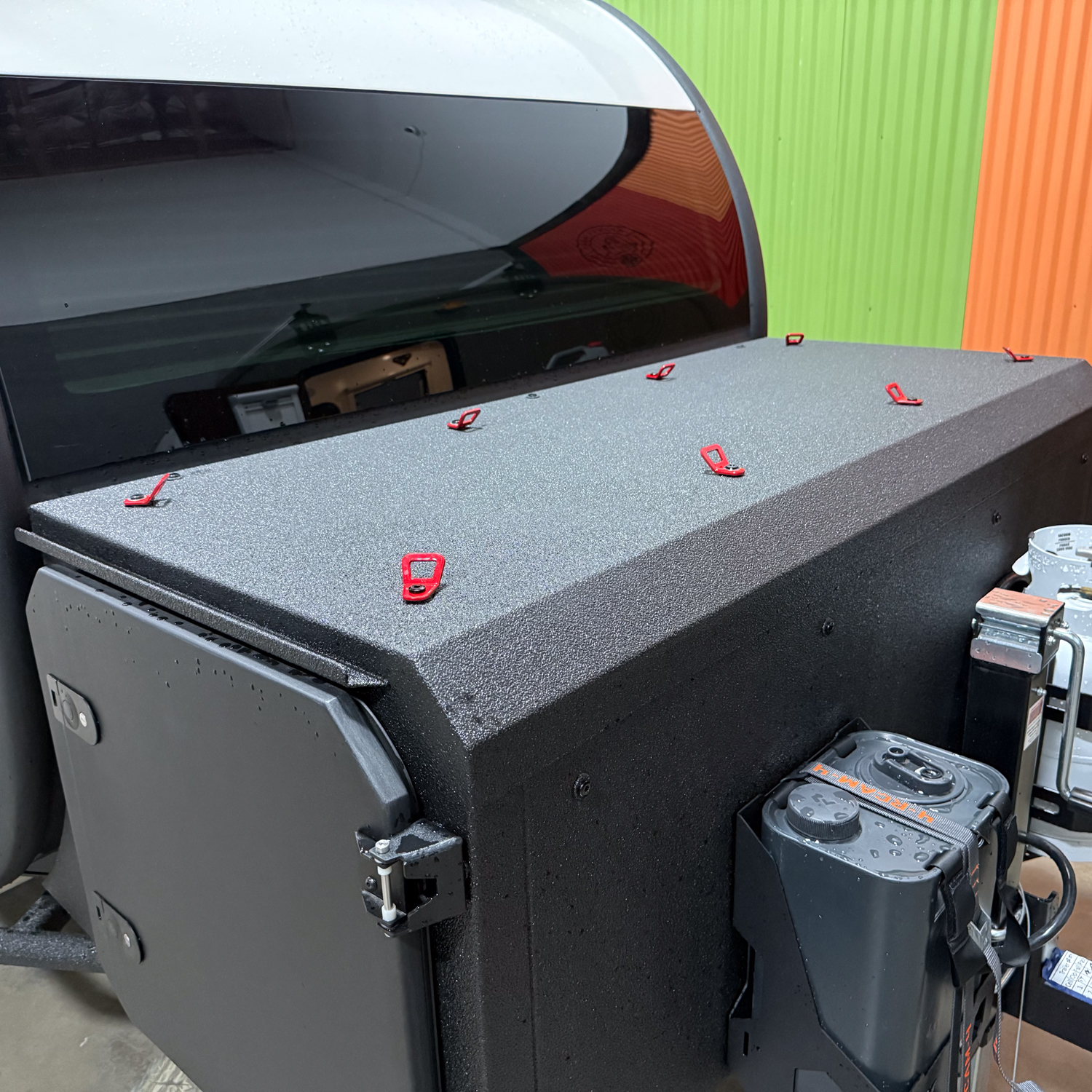

Standard Front Box
$950
Bean’s Front Box provides a secure and sturdy location to store extra gear and your campers battery system. Many owners love this option because of the improved space efficiency and the option to mount a 1UP Dual Bike Rack. The standard box dimensions are 60.5″x 21.35″ x 24.76″.
Norcold NFR45
(Premium Plus Galley Only)
$700
Ever feel like you need more room in your fridge and freezer? We’ve got you covered. The cooler and fridge rack on our Premium Plus Galley accommodates a larger 45-quart fridge and freezer. Your favorite camp cooking goodies won’t ever have to fight for space or get drenched in water again.
NEW Stealth Front Window
$775
Get the best view of the mountains, lakefronts, or sprawling landscapes right from the comfort of your teardrop trailer. With this upgraded front window, you’ll create a modern style with added lighting for your cabin space. Stealth Front Window is recommended with the Light Leaf Solar Panel which will protect it in transit!

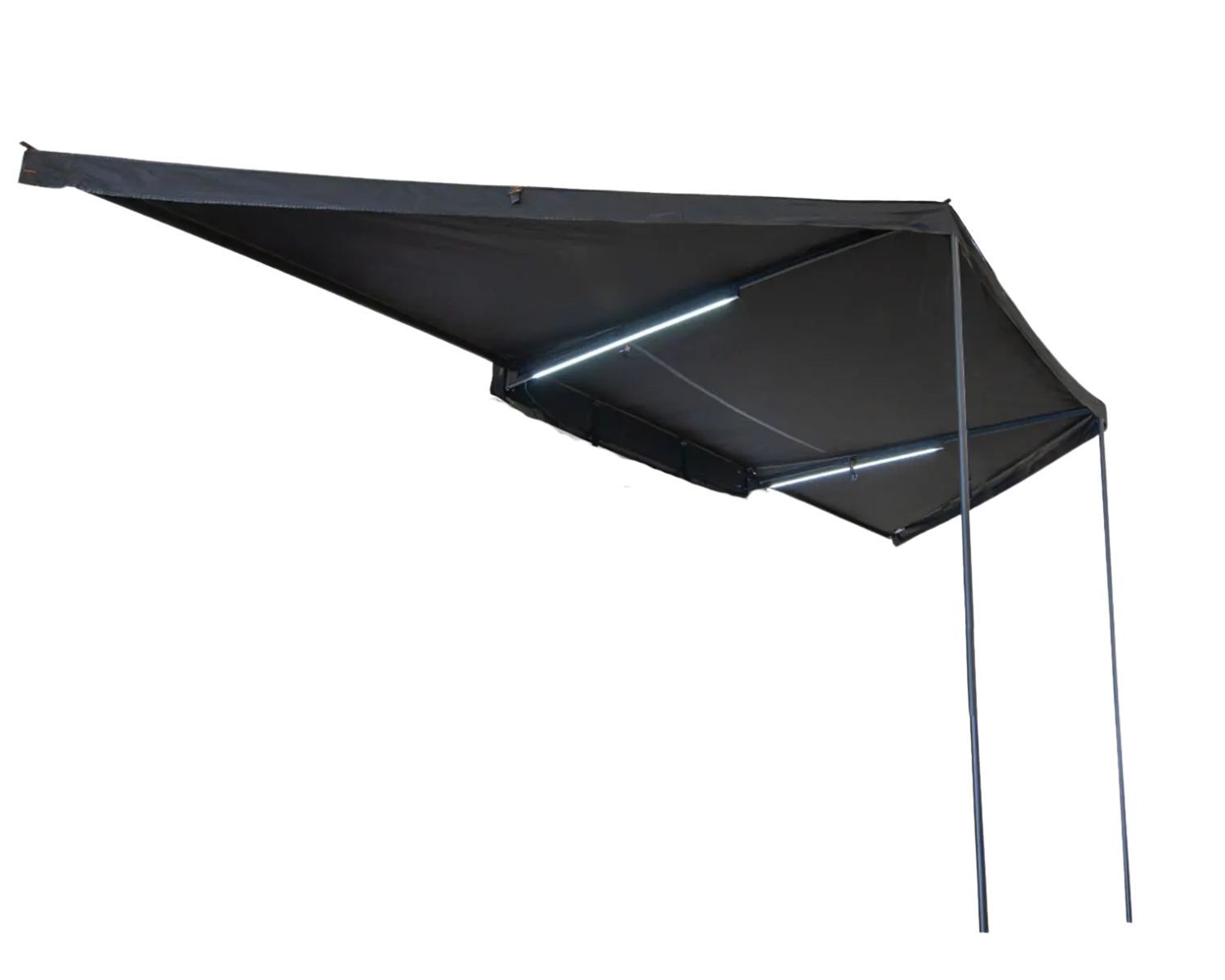

23 Zero 180° Awning
$799
A step up from the Sun Seeker awning, this easy to deploy, wide coverage awning is great for inclement weather or to escape the beating sun. The best thing about this option is it’s sturdy enough to stand up with ratchet straps without having to deploy the additional stabilizing poles.

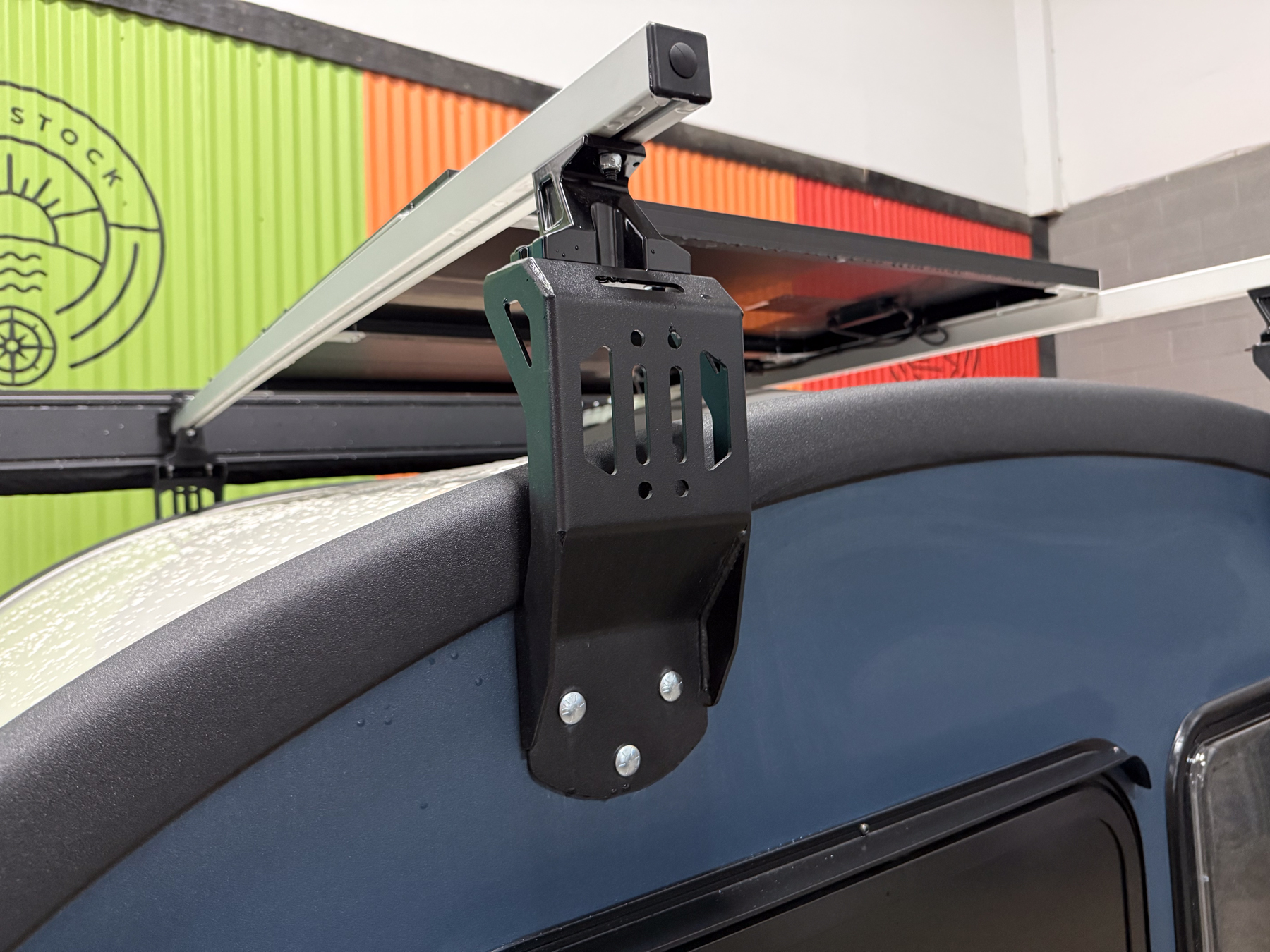

LightLeaf 140 Watt Solar Panel
$1,050
The 140 Watt LightLeaf Solar Panel is an excellent option to charge Bean in transit and be able to offset power consumption at your campsite. While traveling, use the 3 part easy lock system to secure your panel on the front of Bean. When you arrive at your destination simply detach the panel and angle it towards the sun.
Trailer Cover
$1,690
Protect your Bean Trailer from harsh weather elements while it’s being stored! The cover is made from Sunbrella fabric with Sunbrella SUNZIP zippers, allowing you to get inside the cabin at any time. One-size fits all for a tight and snug fit, with the option to customizing the cover for any upgrades/add-ons you might be getting on the outside of your trailer.
Air Conditioning
$3,250
This A/C is fast, efficient and will keep your Bean cool and comfortable when you’re camping in hot and humid climates! We recommend a shore power connection for prolonged use but the unit will run for approximately 3 hours off of a dual lithium battery setup alone. This unit is not retrofittable for Bean owners or Bean Trailer’s that have already started production.
iKamper SkyCamp 2.0
Roof Top Tent
$3,899
Bean Trailer was built with ample space and comfortable sleep in mind. In fact Bean’s cabin has 20% more room than the average teardrop trailer but how should you sleep multiple friends or family members? Easy. Travel smart with iKamper’s easy-to-deploy king size rooftop tent.
DRY WEIGHT: 2000 LBS | TONGUE WEIGHT: 200LBS
